DLH-60 Portable LED Head Light Lamp Medical Loupes

OEM Packaging & Design Service

DLH-60 Portable LED Head Light Lamp Medical Loupes

SKU:
Regular Price $229.90
Express Checkout With:

This Dental LED Headlight is used for surgical operations and examination purposes. It is compatible with dental/surgical loupes with magnification not over 3.5X.

Featuring 50,000 Lux brightness and 6000K color temperature providing bright, white, and shadow-free light allowing the doctor to see tissue characteristics without distortion.

The LED light casing is made of Aluminum, so it is durable and lightweight. Also, the light casing has a special thermal management system with a 143cm total headlight cable for convenient use. The battery pack has a built-in Rechargeable Li-ion battery with power indication and fast and easy recharging of the battery.

Features:

  • Small and Light Weight Design
  • Advanced technology, 50,000 Lux Illumination Intensity, no lamp replacement the lamp
  • Unobstructed Co-axial illumination
  • Headlight housing: Special thermal management system

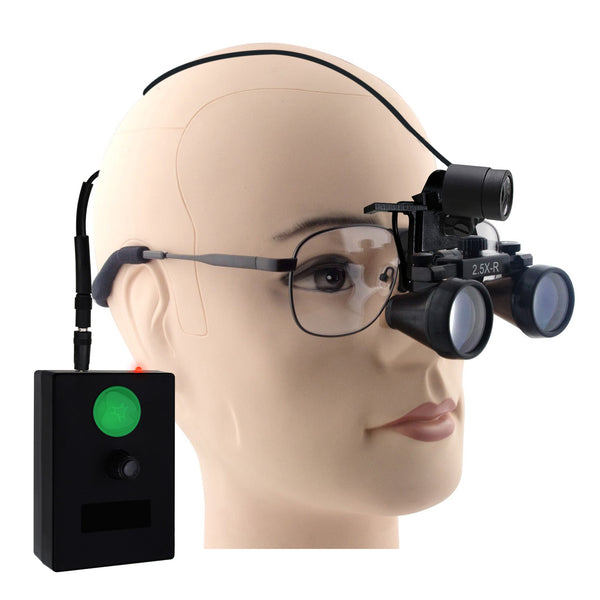

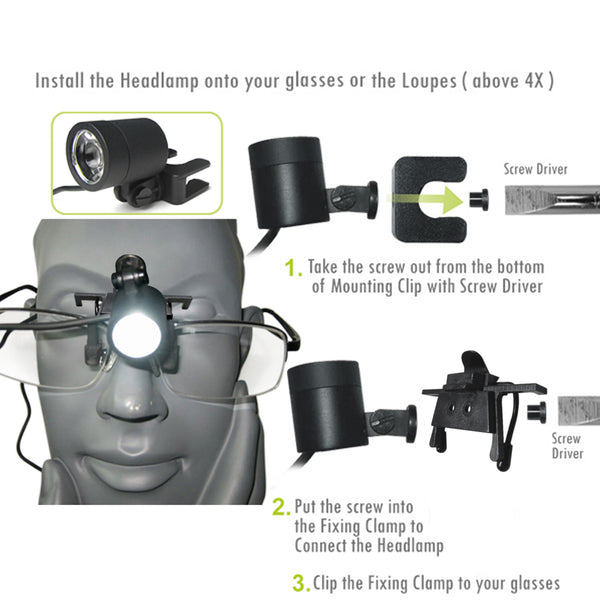

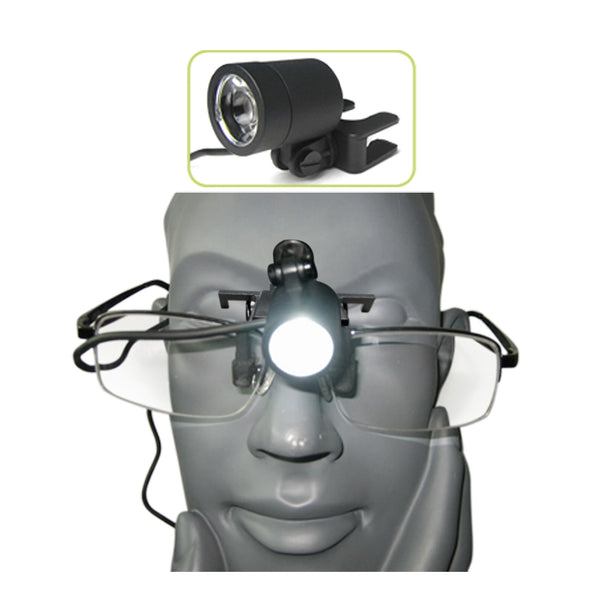

  • The headlight can be attached to loupes with the supplied mount

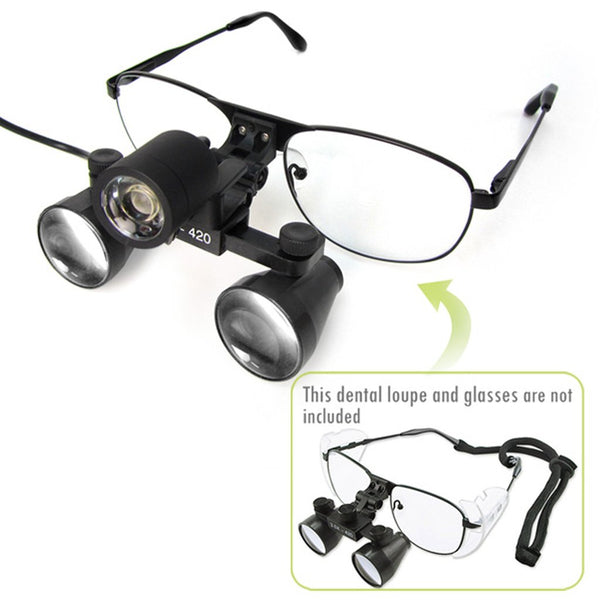

  • Compatible with most flip-up style loupes
  • The direction and angle of the LED beam are almost adjustable
  • Maximum 143cm (4.69 feet) for headlight cable
  • LED Operating Life up to 30,000 hours
  • Adjustable Brightness Intensity (0~100%)
  • Advanced Rechargeable Polymer Li-ion cells Battery
  • Approx. 4 hours recharging time for battery
  • The recharged battery operates approx. up to 4~5 hours
  • Power Indication in Battery Pack
  • Standards: UL / CUL / FCC / PSE / CE


Specifications:

  • Head Light

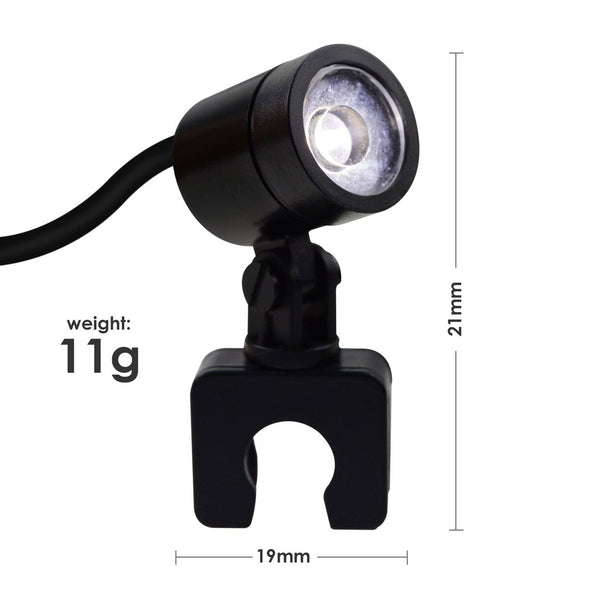

    • Size: 19mm diameter; 21mm length
    • Weight: approx. 11g (0.39 oz) (including mount)
    • Cable Length: Max. 143cm (4.69feet)
    • Diameter of light spot at a distance of 420mm: approx. 80mm
    • Illumination (lux): approx. 50,000 Lux @ 250mm
    • The direction of Illumination: adjustable to almost any direction
    • Operating Time: approx. 4-5h with the included battery pack
    • Light Source: 1W white LEDs
    • LED Operating Life: 30,000hours (estimated life, depends on intensity used)
    • LED Color Temperature: 6,000K (CRT) purely white light
    • Surface Operating Temperature: approx. 60°C (ambient temperature: 25°C)

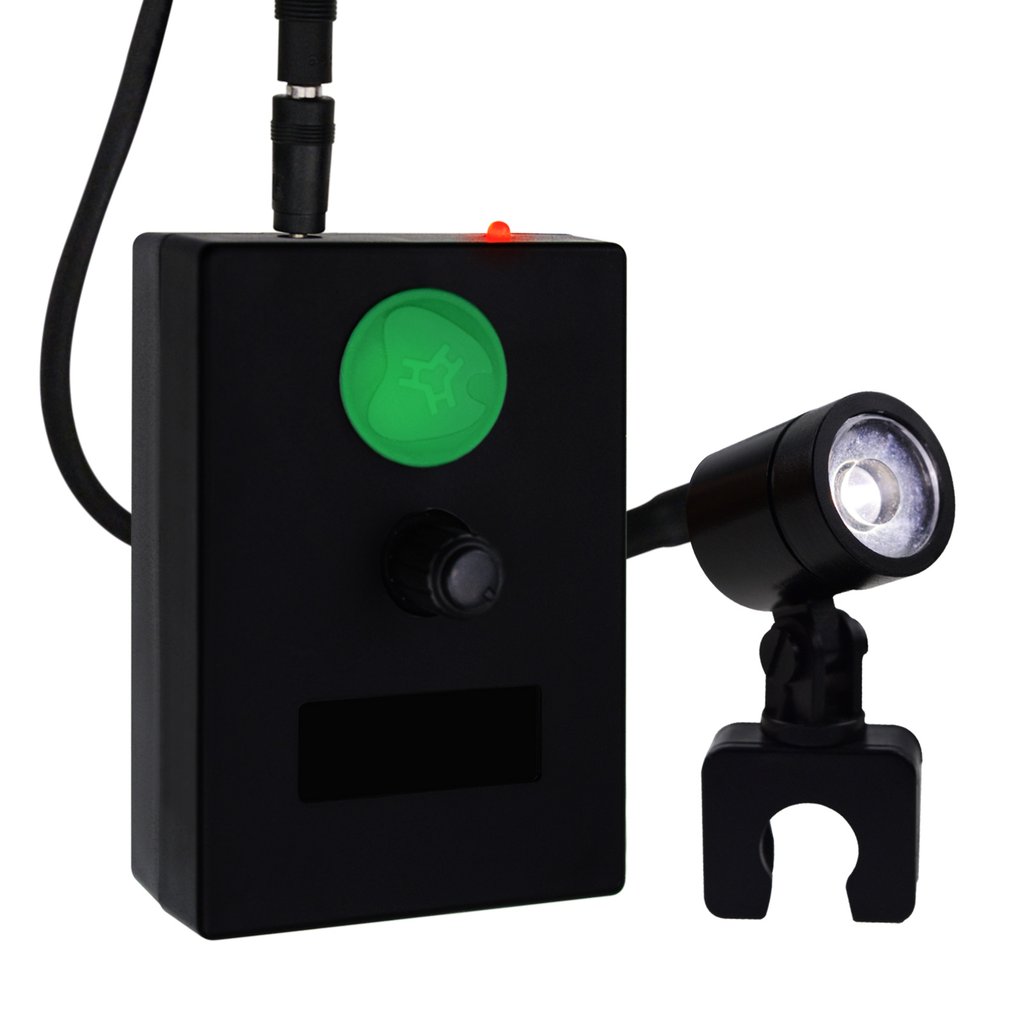

  • Battery Pack
    • Input: 12V DC, >1.0A
    • Output: Variable, 0-4V DC / 0-0.6A
    • Weight: approx. 110g (3.99 oz) including battery

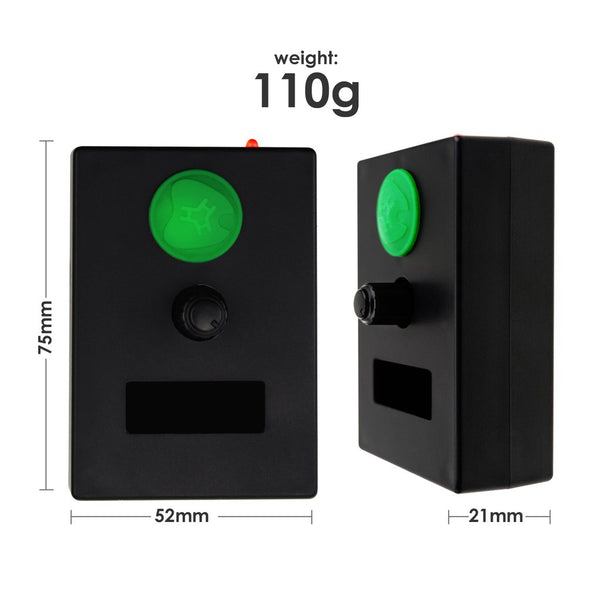

    • Dimension: approx. 75(L) x 52(W) x 21(H)mm (2.95 x 2.05 x 0.83 inch)
    • Duration of use: approx. 4-5hours at full load
    • Charging Time: approx. 4hours
    • High Battery Output Efficiency: > 90%, ASIC
    • Type: Advanced Rechargeable Polymer Li-ion cells
    • Capacity: 7.4V, 1400mAh (approx.)
    • Battery Life: approx. 500 charge/discharge cycles
    • Battery Protection: Against over-charge and over-discharge
    • Power Adapter (Input): 100~240V AC, 50~60Hz 0.3A (US / EU / UK / AU plug)
    • Power Adapter (Output): 12V DC, >1.0A
    • Output DC plug: Mini USB 5 pin
    • Can be recharged to the USB port of the computer

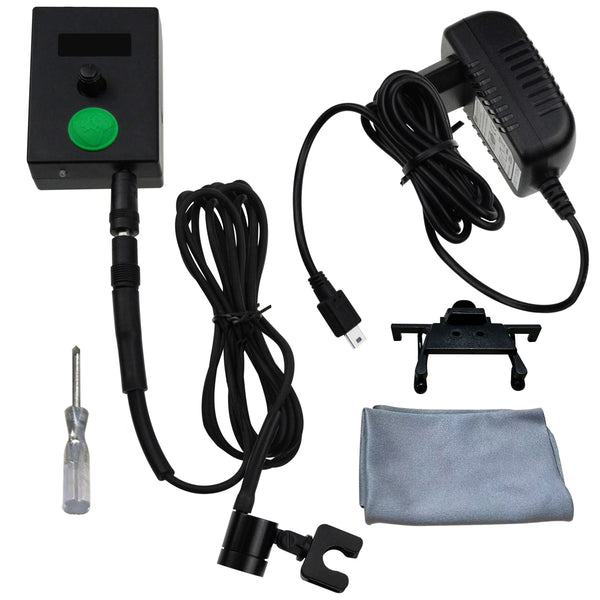

Set Includes:

  • 1 x LED Head Light with mounting clip and cable
  • 1 x Battery Pack
  • 1 x Power Adapter (US / EU / UK / AU plug)

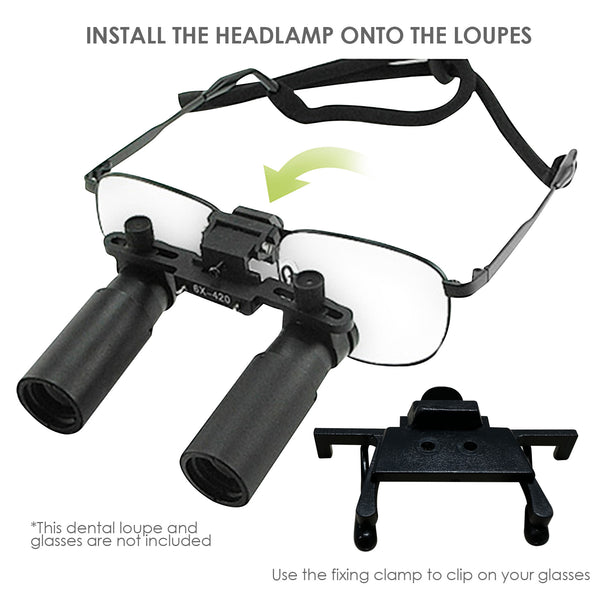

  • 1 x Fixing Clamp
  • 1 x Mini screwdriver
  • 1 x Cleaning cloth

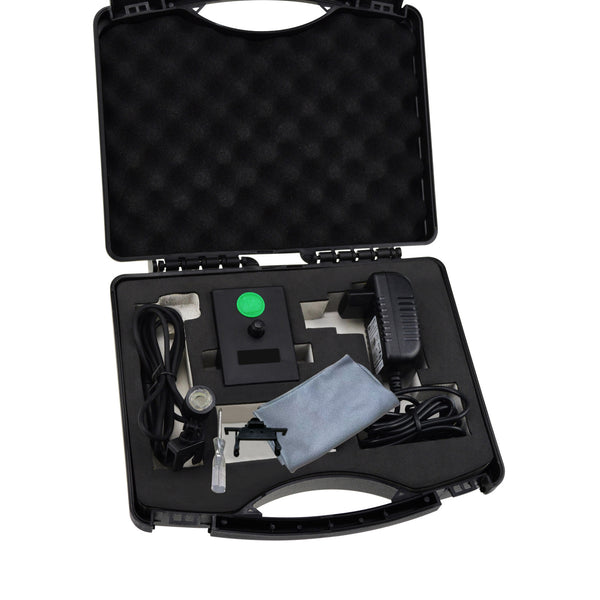

  • 1 x Hard Carrying Case
  • 1 x English Instruction Manual
  • Standard Factory Package
