E04-038 Multimeter Tester True-RMS AC/DC Current Voltage Resistance Capacitance Diode Temperature

OEM Packaging & Design Service

E04-038 Multimeter Tester True-RMS AC/DC Current Voltage Resistance Capacitance Diode Temperature

SKU:
Regular Price $59.90
Express Checkout With:

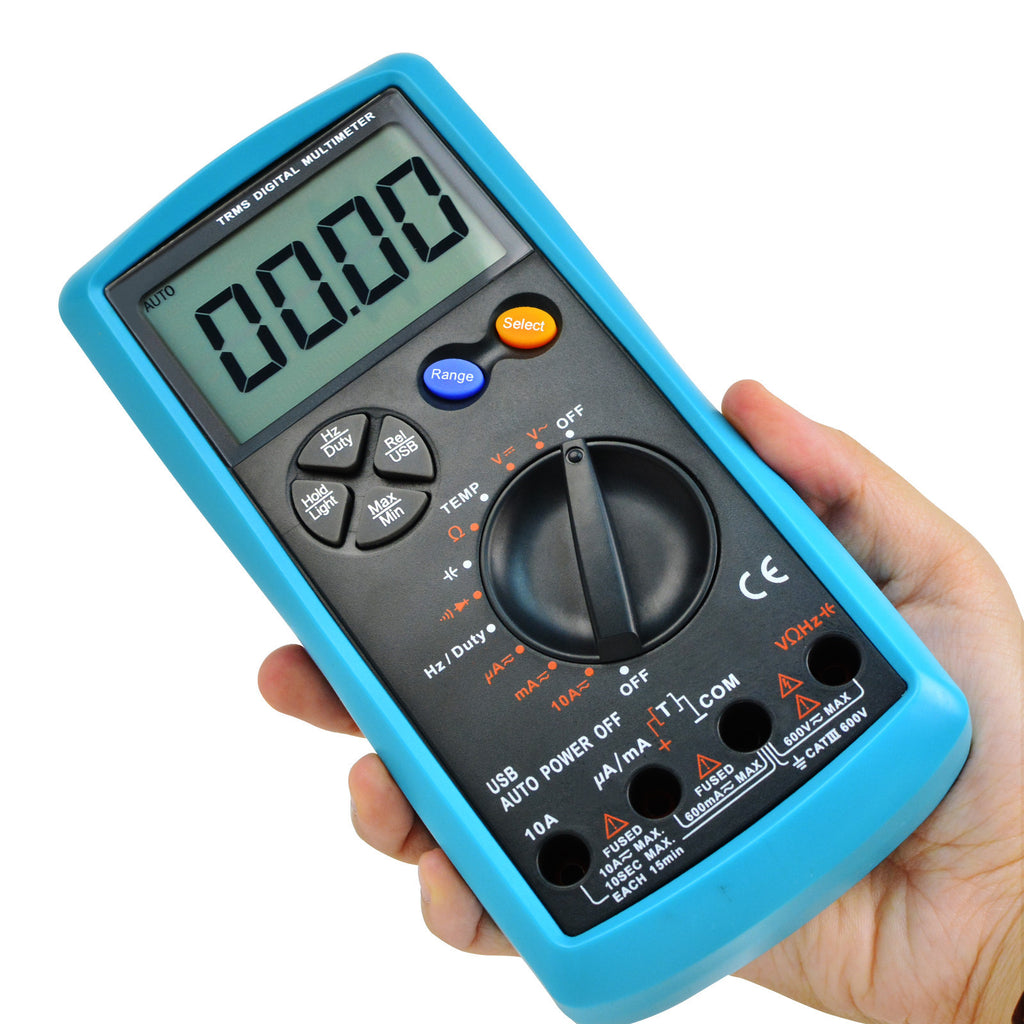

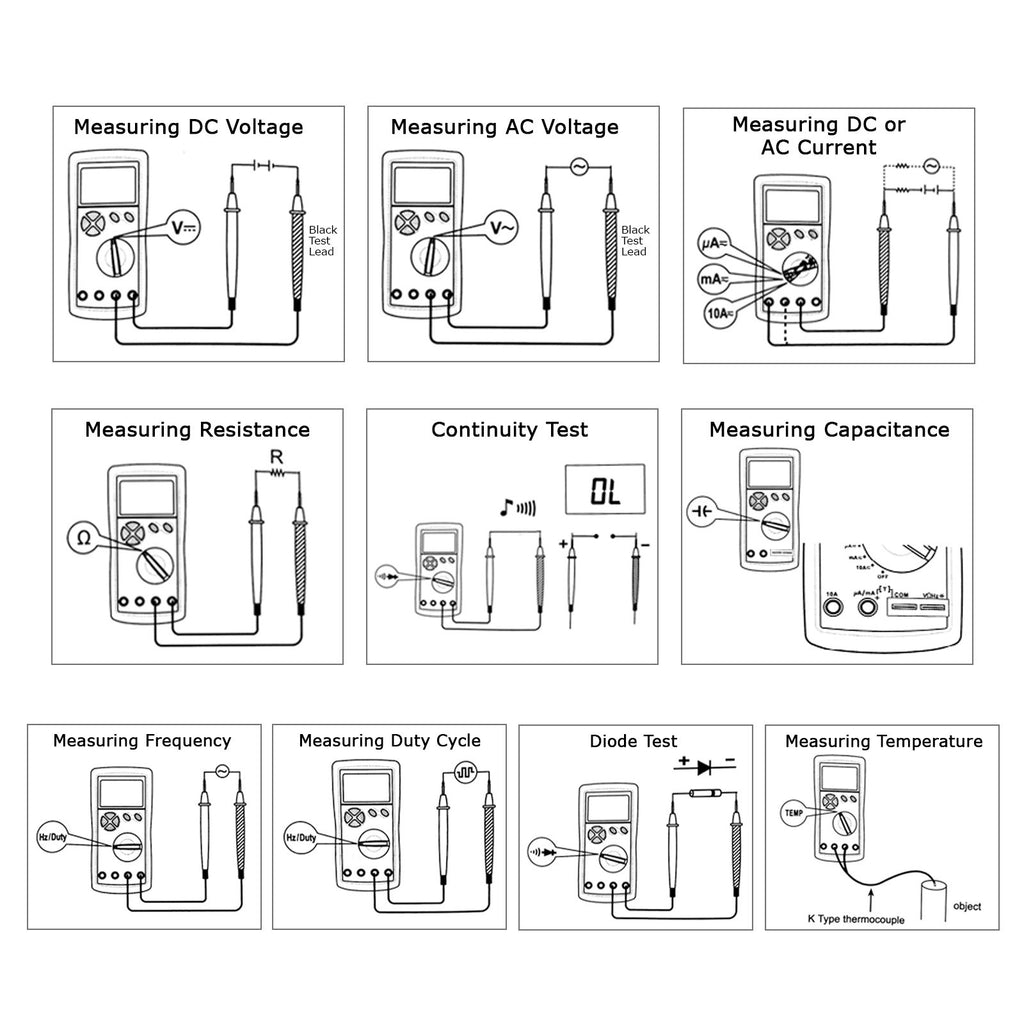

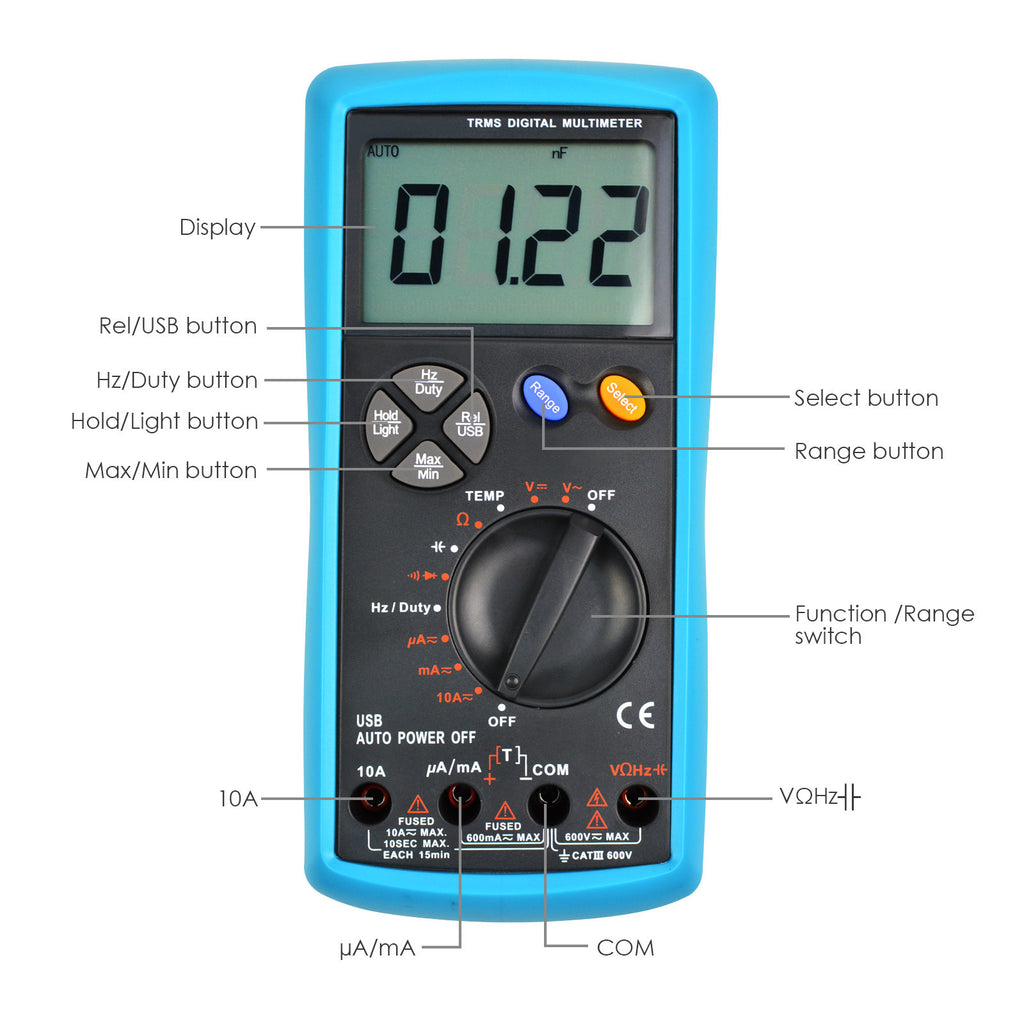

This multimeter is compact 3 5/6-digit true rms digital multimeter with USB2.0 standard interface. It can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, Diode, Temperature(°C/°F), Continuity and Duty Cycle.


It has an CE Marking approval from European Directives for complying with the essential health and safety requirements.



Features:

  • 3 5/6- digit Tru RMS
  • USB2.0 standard interface
  • Measures True-RMS AC Voltage and True-RMS AC Current
  • Provides manual range and auto-range mode

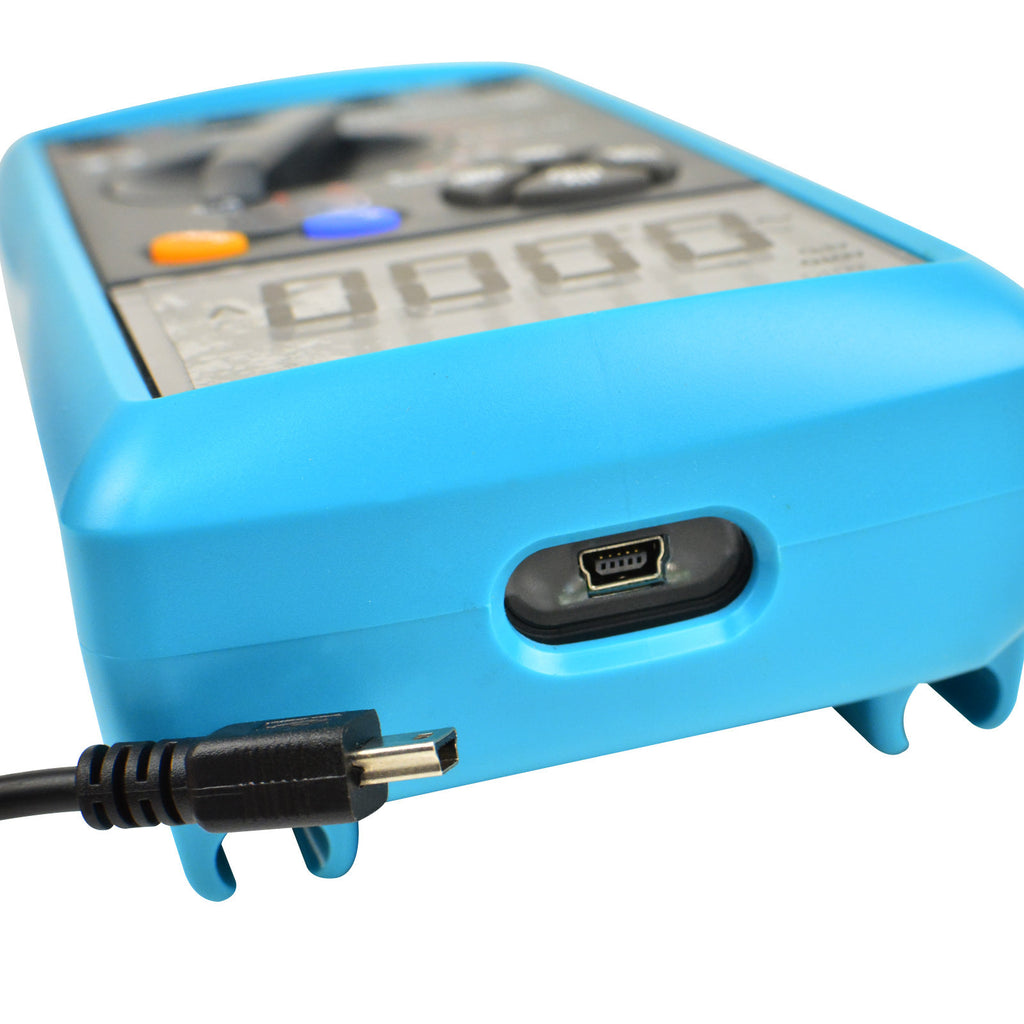

  • Meter to computer transfer of measured readings via USB port
  • With Analog Bar Graph and Reading Unit Indication
  • Sampling rate is 3 times/sec
  • Auto Polarity Indication
  • Data Hold
  • Backlight Functions
  • Overload Protection for all ranges; displays "OL" on screen
  • Low battery indication
  • Relative measurement
  • Max/Min value recording
  • Auto and Manual power off
  • Easy to operate and ideal measurement tool
  • Designed according to IEC-61010 with CAT III 600V and pollution degree 2
  • Conforms to EU Union directives
  • With UL&GS Marking
  • Application:
    • measurements on distribution boards, circuit breakers, wiring including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed installation, and equipment for industrial use and some other equiment like stationary motors with permanent connection to the fixed installation.

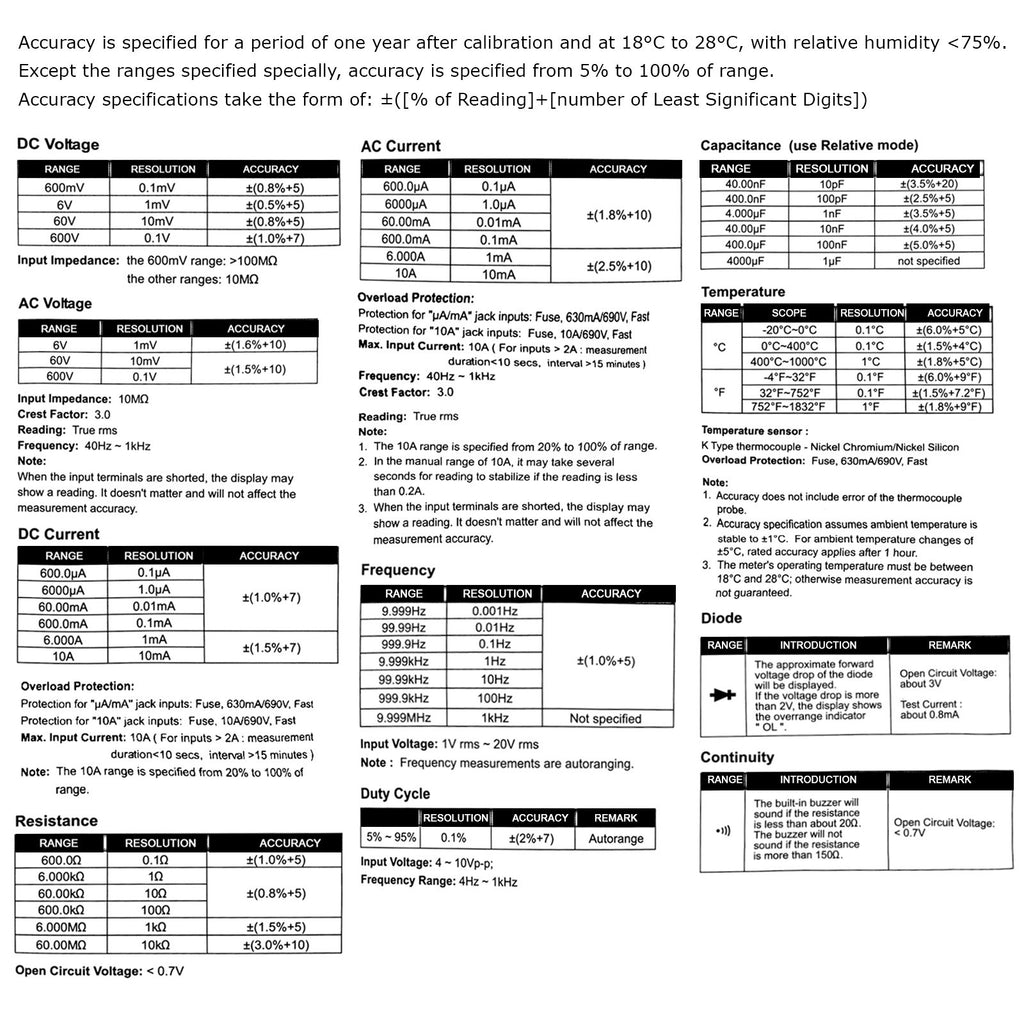

Specifications:

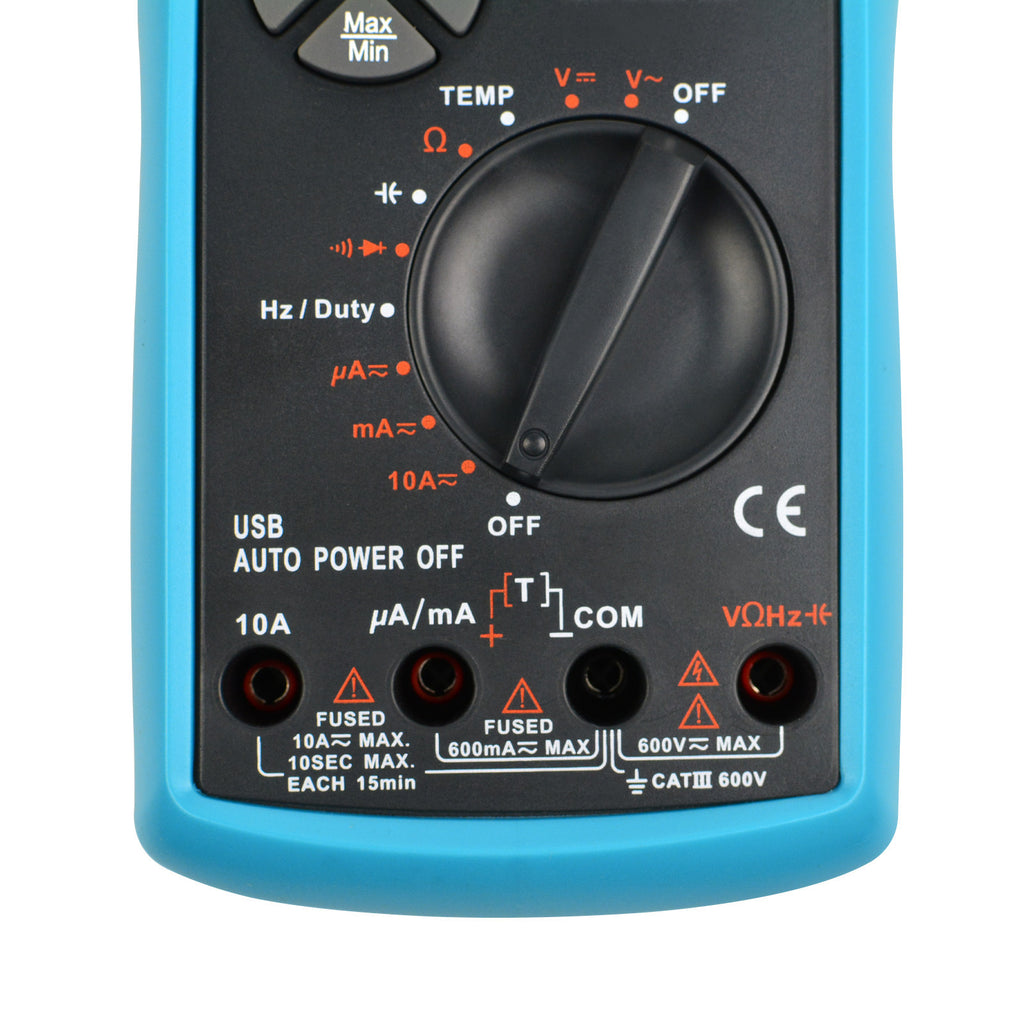

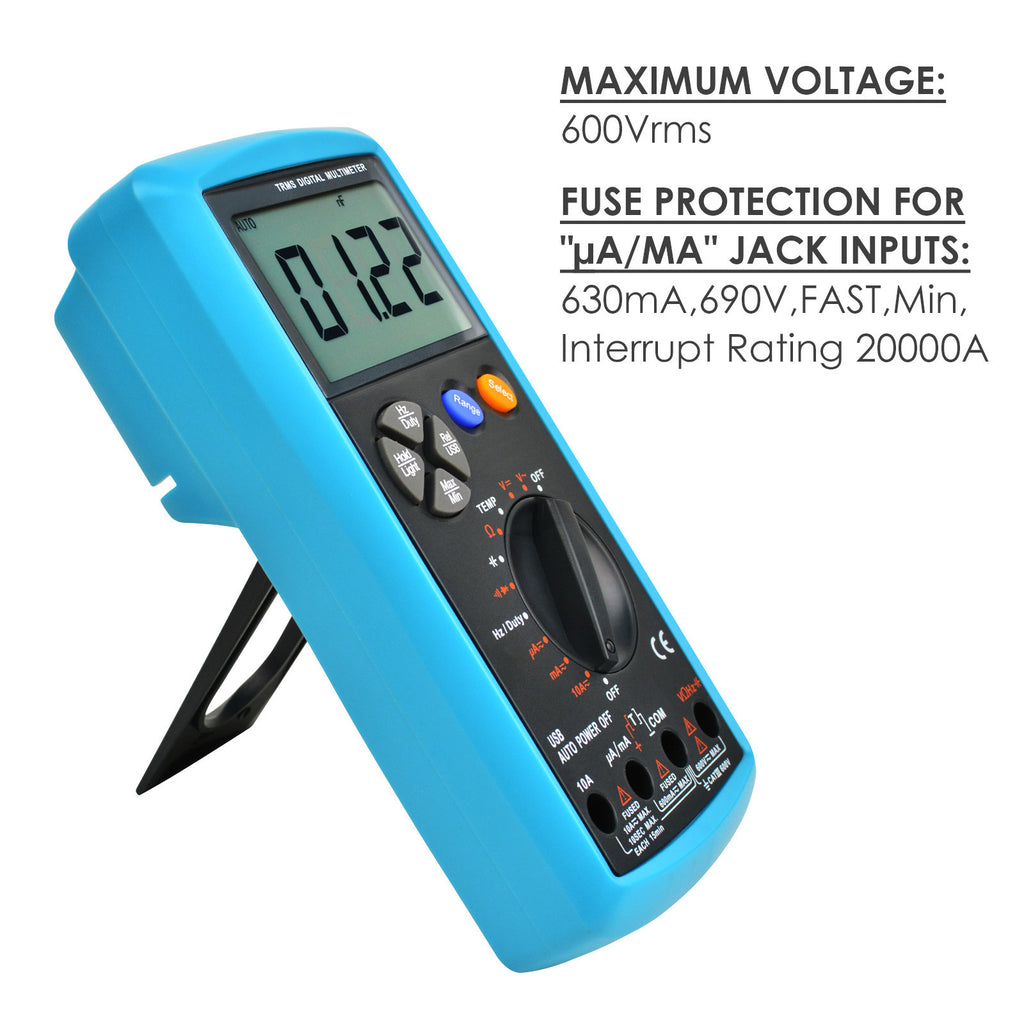

  • Maximum Voltage between any Terminal and Earth Ground : 600Vrms
  • Fuse Protection for "μA/mA"Jack Inputs:
    • 630mA,690V,FAST,Min,Interrupt Rating 20000A
  • Fuse Protection for "10A"Jack Inputs:
    • 10A,690V,FAST,Min,Interrupt Rating 20000A
  • Display:LCD, with a max,reading of 9999
  • Overrange Indication:"OL"shown on the display
  • Negative Polarity Indication:"-" shown on the display automatically
  • Sampling Rate: about 3 times/sec
  • Operating Environment: 0°C-40 °C,<75%RH
  • Temperature Coefficient:
    • 0.2 x (specified accuracy)/°C(<18 °C or >28°C)
  • Storage Environment: -30°C~60 °C,<85%RH
  • Operating Altitude:0-2000 meters

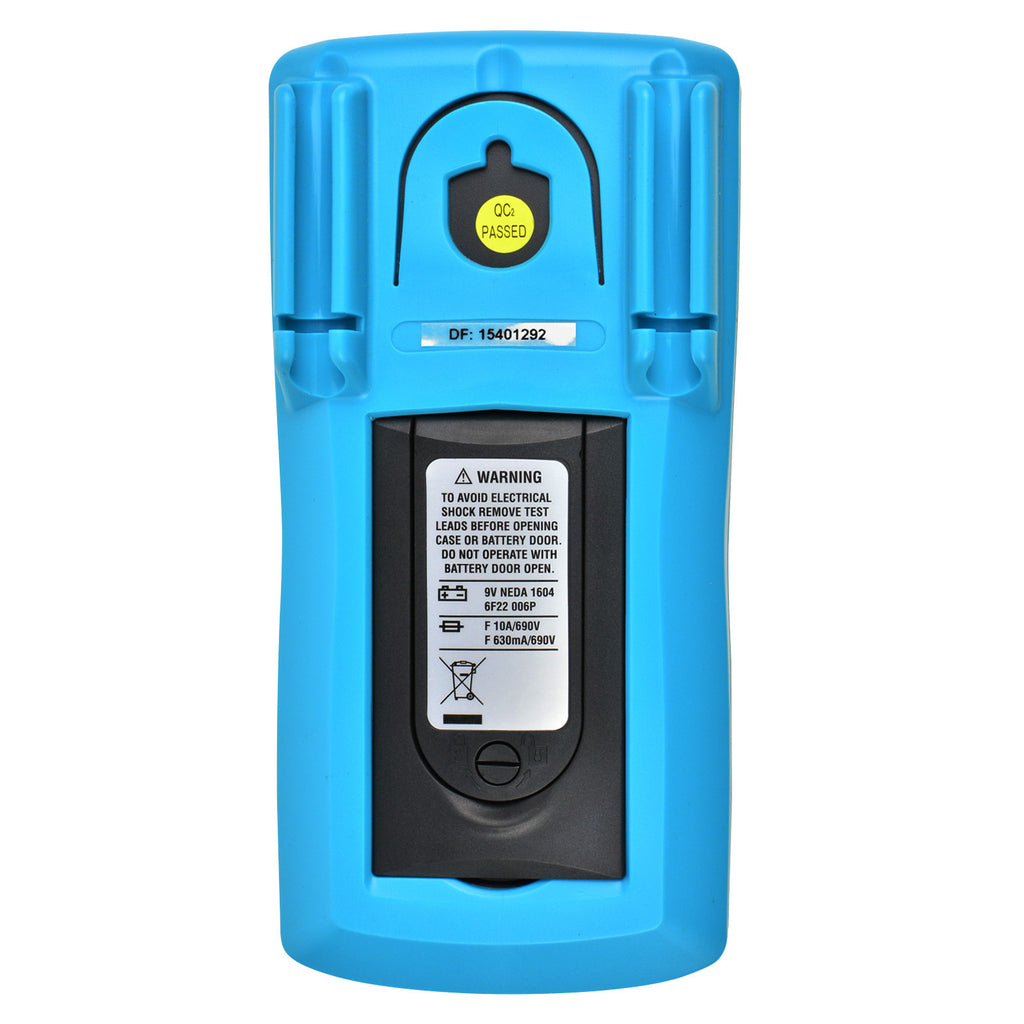

  • Power : 1 x 9V Battery

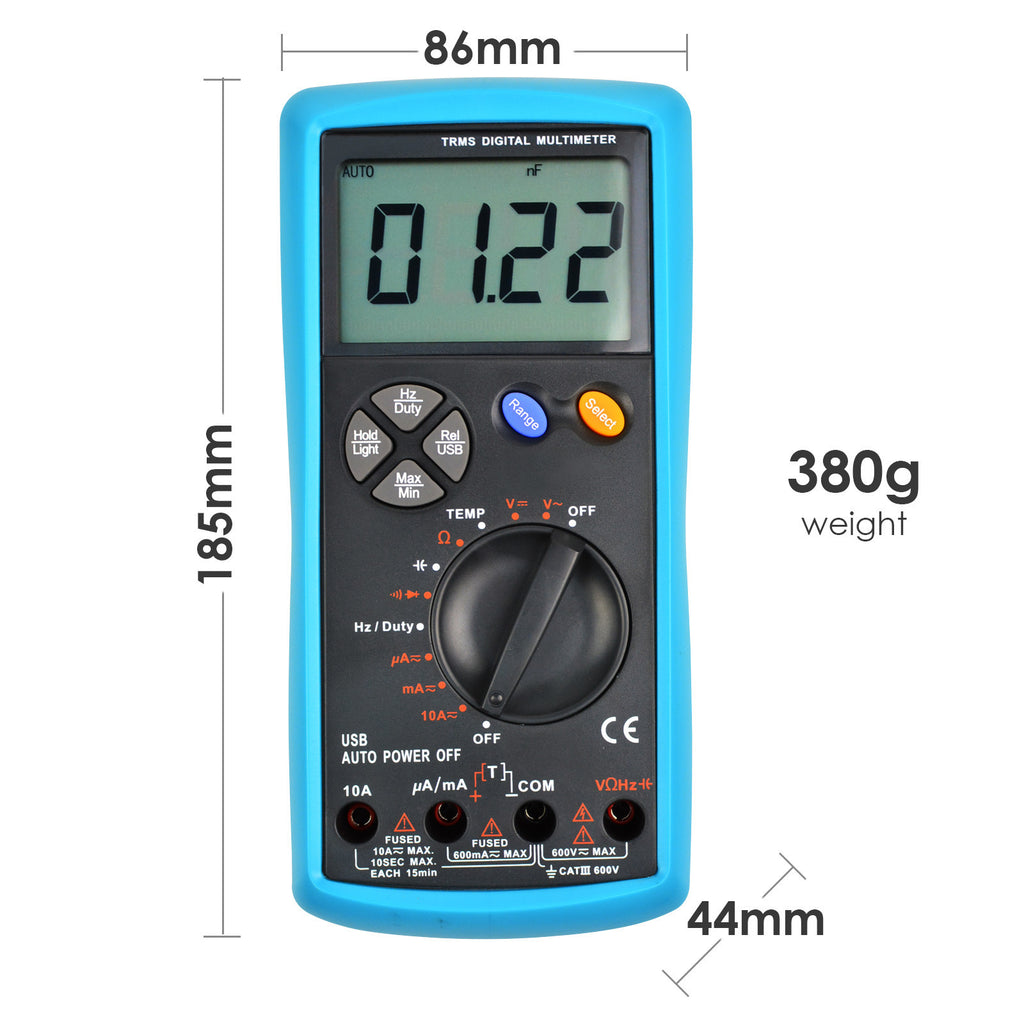

  • Size:185 x 86 x 44mm
  • Weight: about 380g (including battery and the holster)

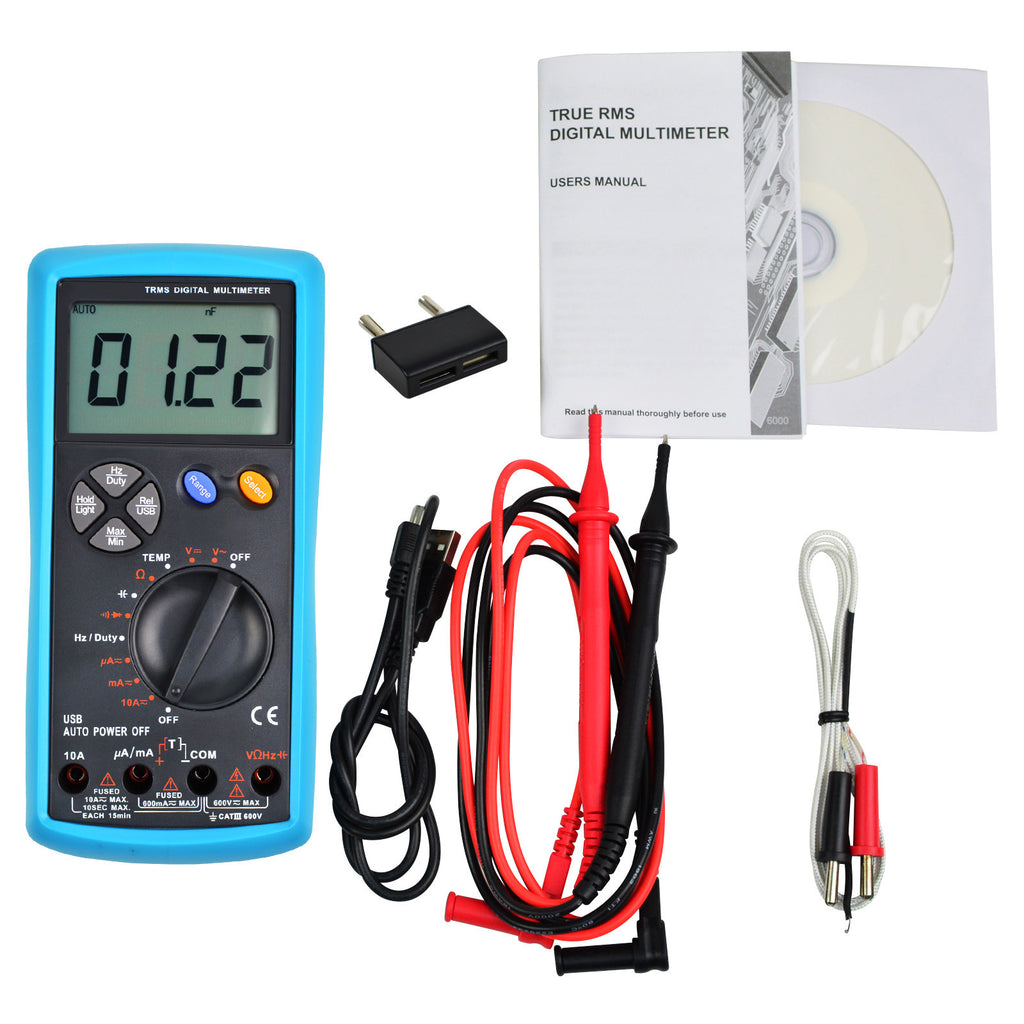

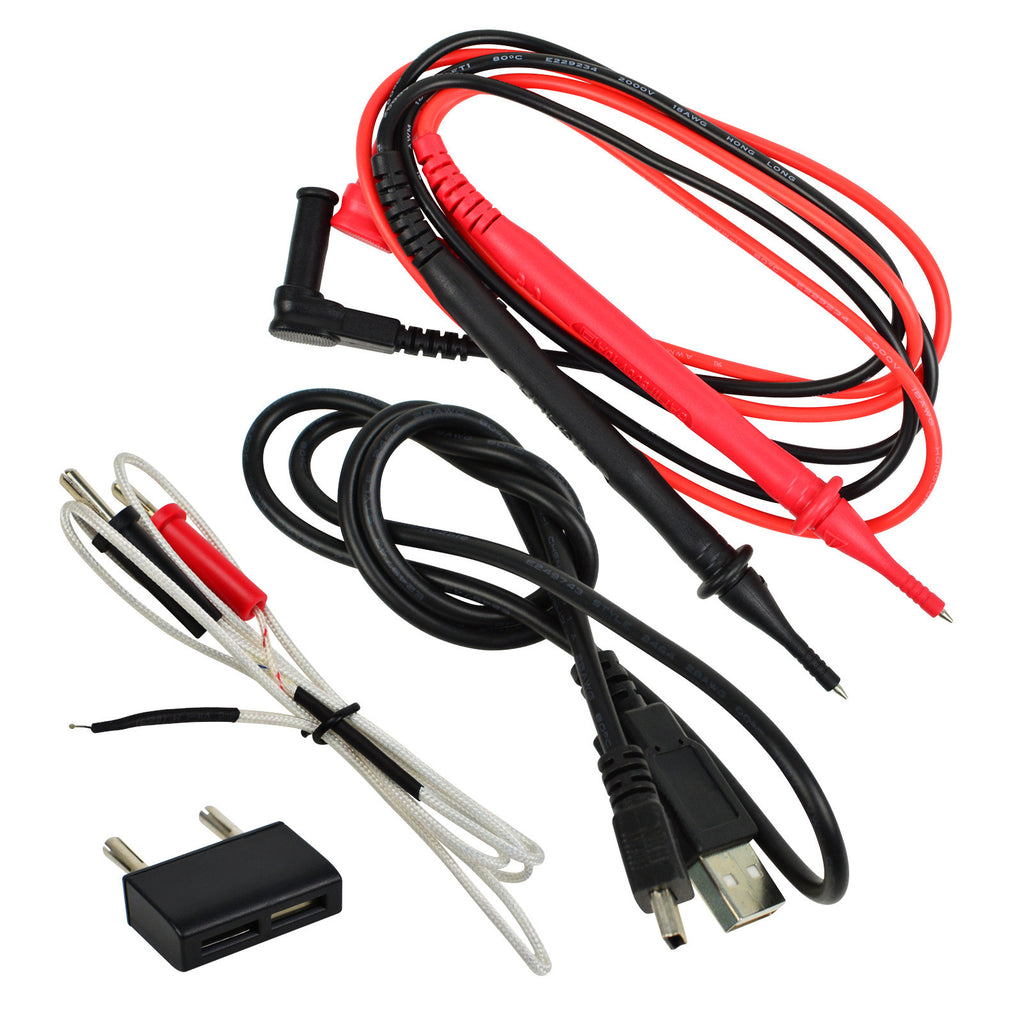

Set Includes:

  • 1 x True RMS Multimeter

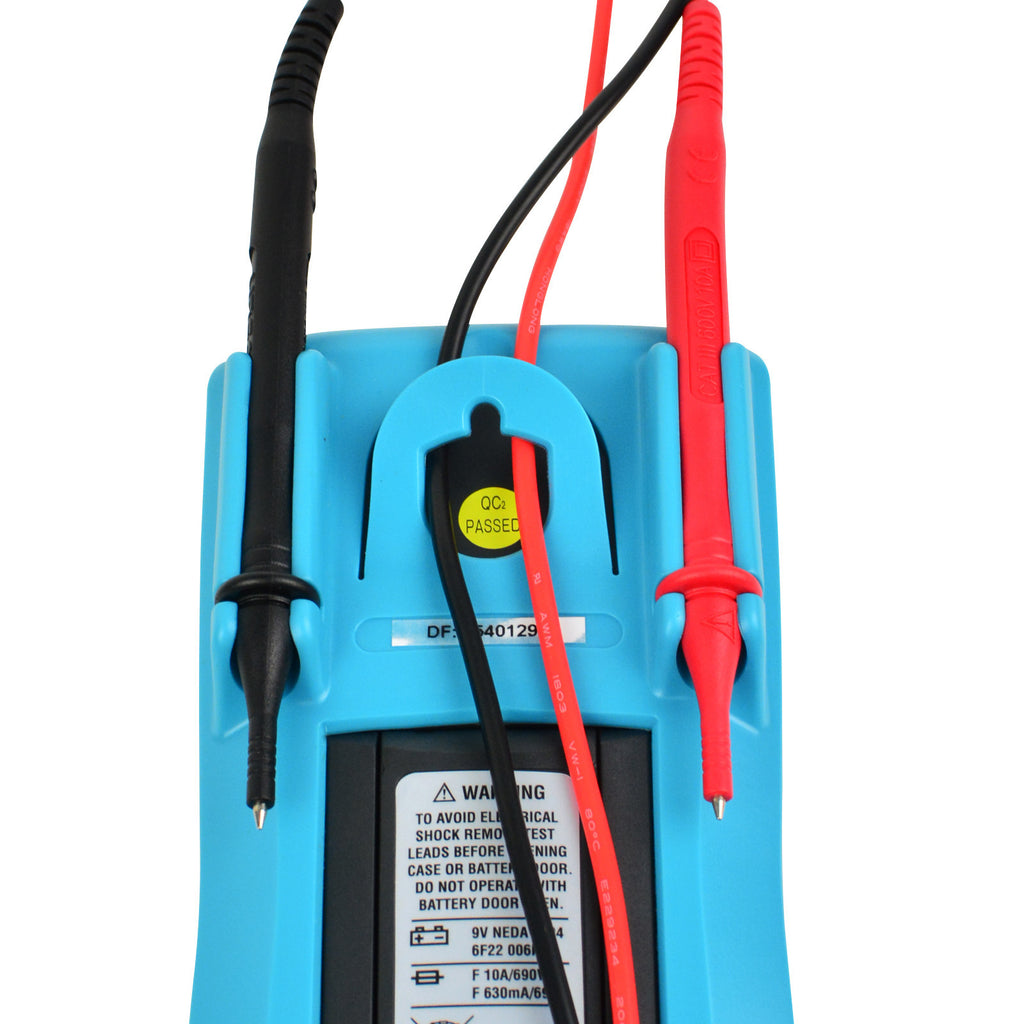

  • 1 x Test Leads (pair)

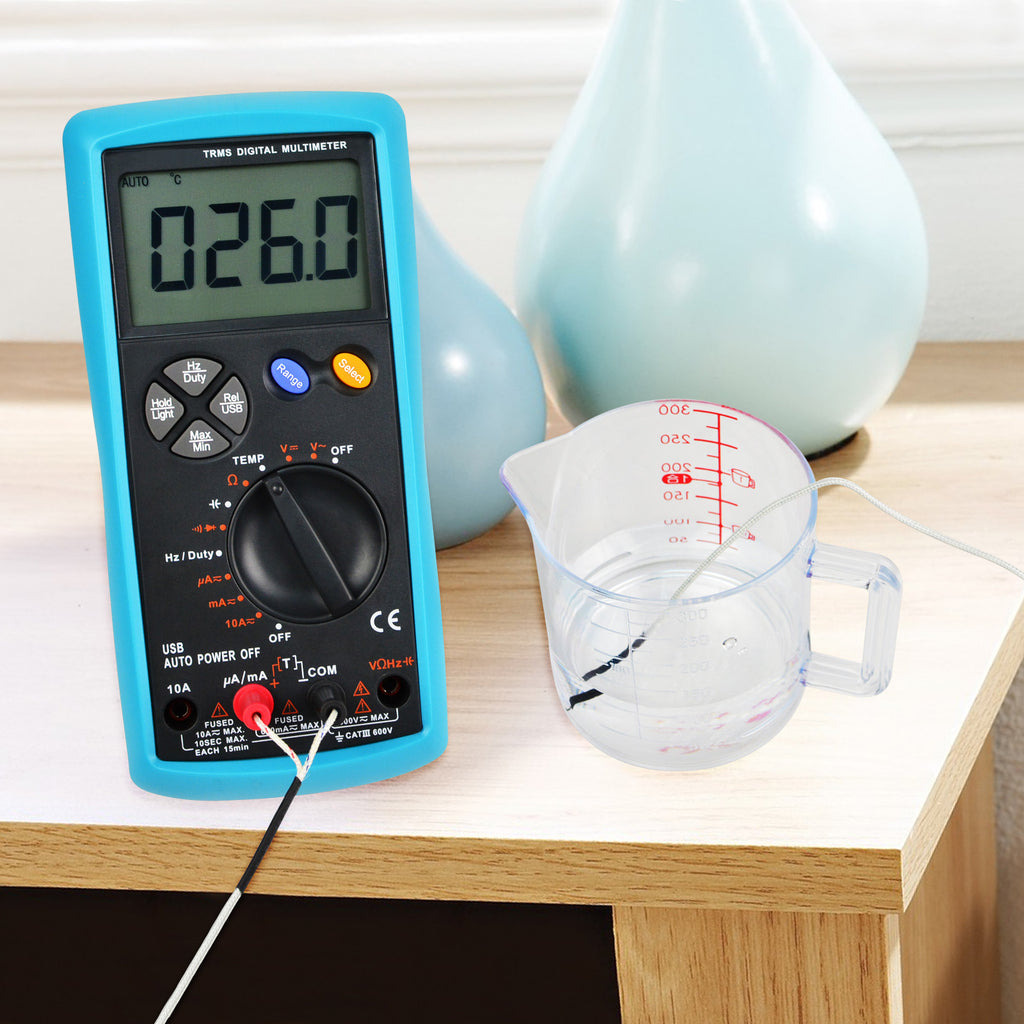

  • 1 x K-Type Thermocouple
  • 1 x Transistor Test Socket
  • 1 x USB cable
  • 1 x CD Software
  • 1 x 9V Battery (FREE)
  • 1 x English Manual
  • Standard Blister Packaging
