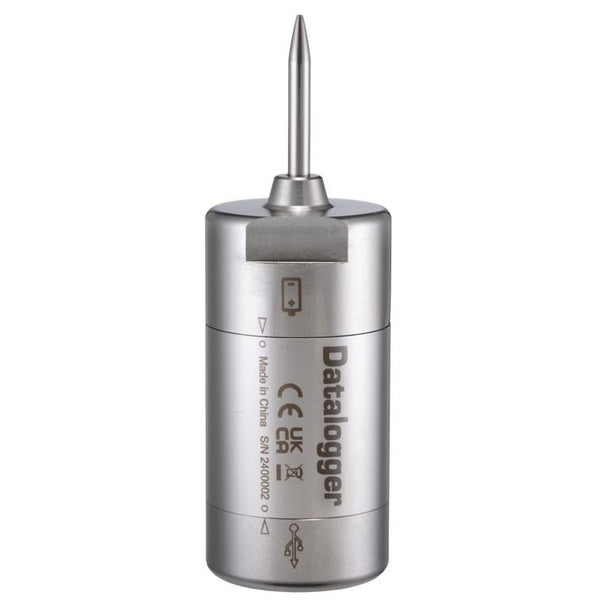

88170 High-Temp Data Logger with PDF Report PT1000 Sensor, IP68 Waterproof, Auto-Generates Graphs & Excel

Minimum Order Quantity (MOQ) : 10 pieces
For inquiries and orders, e-mail us at sales@gainexpress.com or message us via our chatbot

The ultimate solution for high-temperature monitoring and validation, this rugged data logger features a built-in PT1000 A-grade probe for precise measurements ranging from -40 to 140°C (-40 to 284°F). Designed for harsh environments, the device boasts an IP68 rating, ensuring it remains waterproof even at 10 meters depth for 30 minutes, while the SUS316 stainless steel housing guarantees durability during autoclave and oven cycles.

Features:

• Plug & Play
• Built in PT1000 A grade probe for high temperature measuring
• Automatically generate PDF/Excel report
• Report contains summary, graph and detailed data
• Completely user re-programmable: 6 languages, sampling interval, start delay, unit, effective range, password and company name

Specifications:

• Temperature Measurement
  • Range: PT1000 RTD sensor -40~140℃ (-40~284℉)
  • Resolution: 0.1℃ (0.1℉)
  • Accuracy: ±0.4℃ for full range
• IP: IP68 (10 meters water deep @30mins)
• Housing/Probe materials: Stainless steel SUS316
• Logging Type: Multiple time use till battery power is low
• Sampling Points: 48,000 readings
• T90 Response time: <20 seconds (room Temp. to 90℃)
• Operation time:
  • No longer than 48 hour @121℃ autoclave
  • No longer than 30 mins @134℃ autoclave
  • No longer than 1 week @140℃ oven
• Sampling Interval: 1, 5, 10, 30 seconds, 5, 10, 30, 60, 90,120 minutes
• Start Delay: 0, 5, 30, 45, 60, 90,120 minutes or 24 hours
• LED Indicator: Green: REC; Red: Low battery
• Operating Environment:
  • Temperature: -40~140℃ (Logging status); room temp.(PC status)
  • Humidity:＜80%
• Storage Environment:
  • Temperature:: -40~85℃
  • Humidity:＜90%
• Battery: 1 x 3.6V Lithium battery (installed before shipment). Battery can last 1 year at 5-second sampling rate in the full temperature measuring range
• Dimension:
  • Meter: 64(L) x 31.2(Dia)mm

  • Probe: 25.8(L) x 3.5(Dia)mm
• Weight: approx.. 175gms

Set Includes:

• 1 x Temperature Data Logger
• English Instruction Manual
