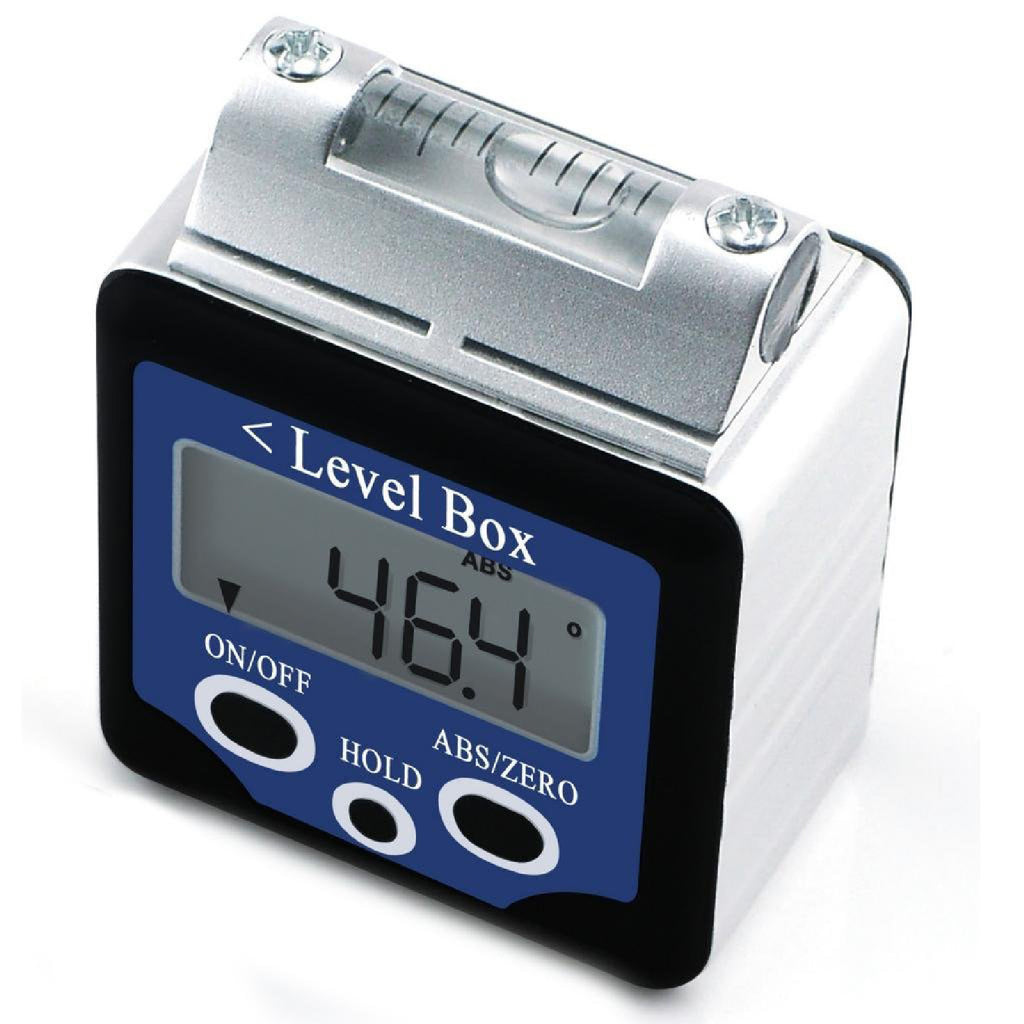

AG-02LB Digital 360° Bevel Box / Inclinometer w/ Magnets & Spirit Level Angle Finder Large LCD Display
SKU:
Regular Price
$26.90
This Digital Bevel Box with Spirit Level provides relative and absolute measurements as well as zero setting to any position. It provides reading between ±180.0° (0~360°) on table saws and other shop equipment instantly. Placing it to reference surface zero gives measured results within 0.1° accuracy. With built-in spirit level finding horizontal level of the surface can now be achieved quickly and precisely.

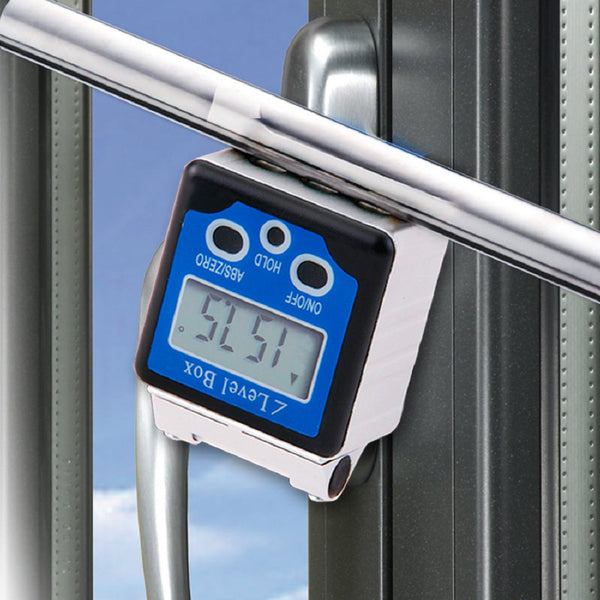

Easily measure bevel angle of miter saw, examine and repair the automobile, etc. with the 3 built-in magnets stick securely to metal surface such as steel tables, fences, plane, bits, saw/band saw blades, machine tops and other shop equipment. With care you can also use it on aluminum or wood.
Applications:
- Setting blade angle of Miter Saws
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting workpiece angle for milling
- Drainage angles and run off slopes
- Grader and tractor work alignment
- Platform monitoring
-
Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table

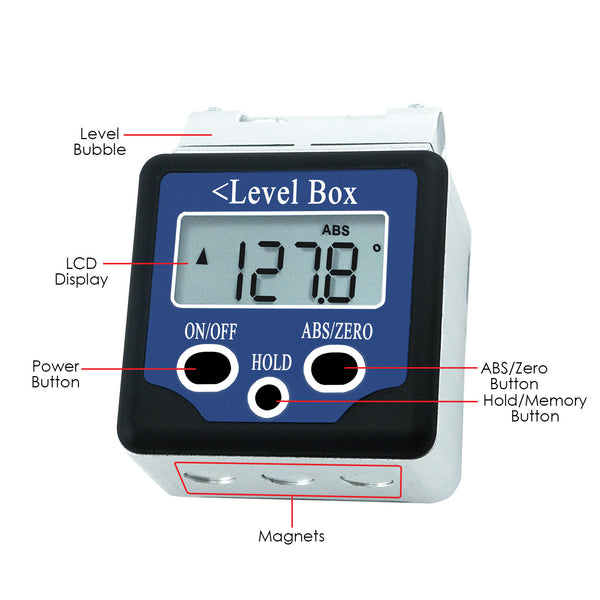

Features
- Absolute and Relative measurements
- 3 button setup with wide measuring range of ±180° (0 ~ 360°) with ± 0.1 Repeatability

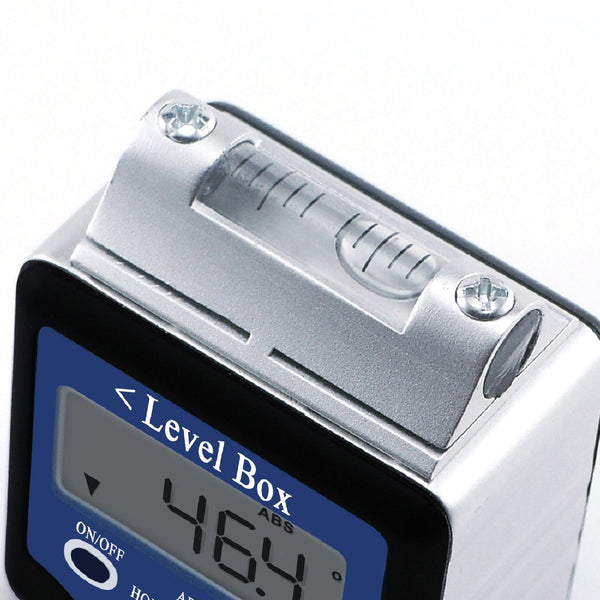

- Bigger, sharper and high accuracy spirit level
- Data HOLD function

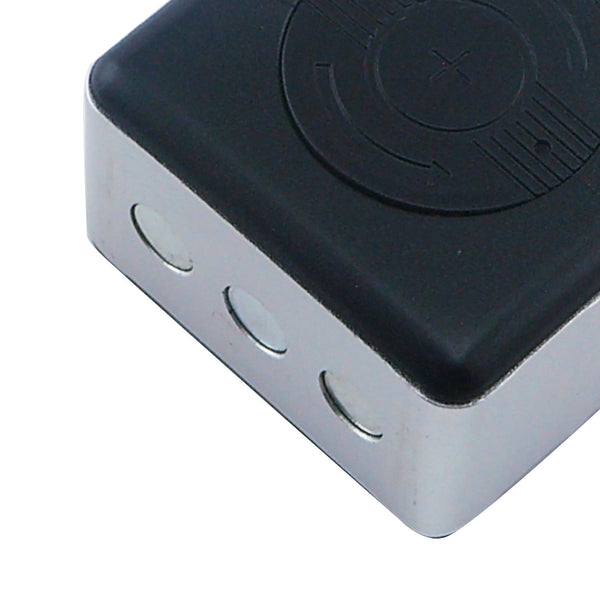

- 3 Powerful built-in magnets on the base secures the attachment to any metal surface

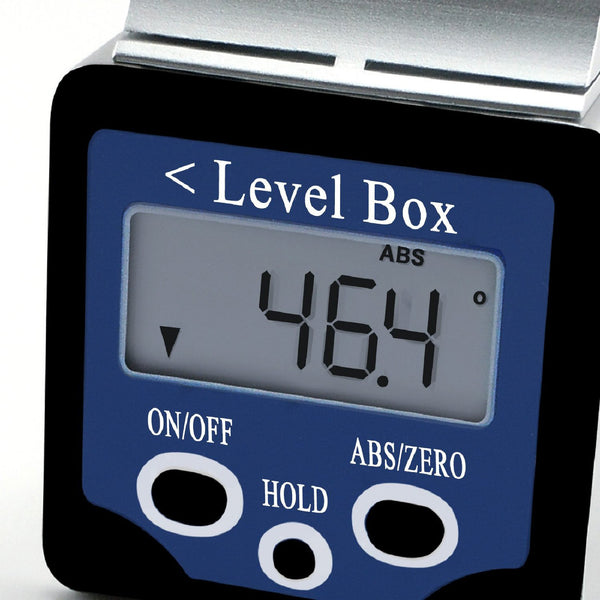

- Easy-to-read large readout LCD display
- Light weight with compact design
- Fast and accurate measurements are guaranteed
- Zero button easily calibrates to any reference surface
- Auto power off
-
Housed with tough aluminum frame & plastic on both face

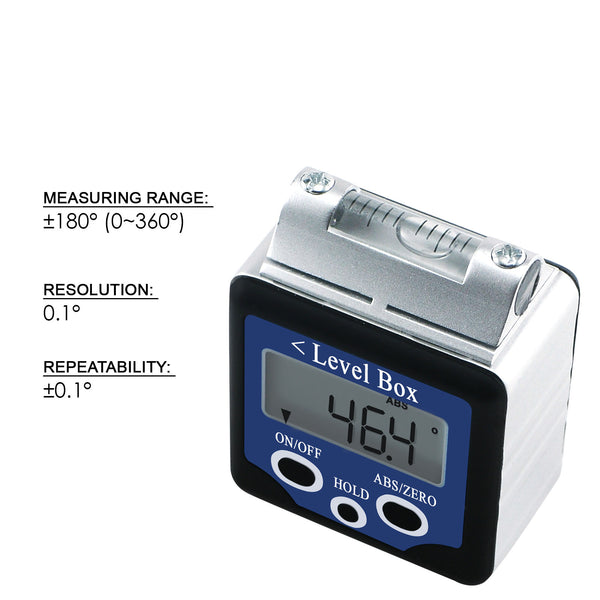

Specifications
- Measuring Range: ±180° (0~360°)
- Resolution/Accuracy: 0.1°
- Repeatability: ±0.1°
- Spirit Level Accuracy: 2'
- Working Current: < 100 µA
- Power: 1 x 3V CR2032 Lithium Battery (Included)

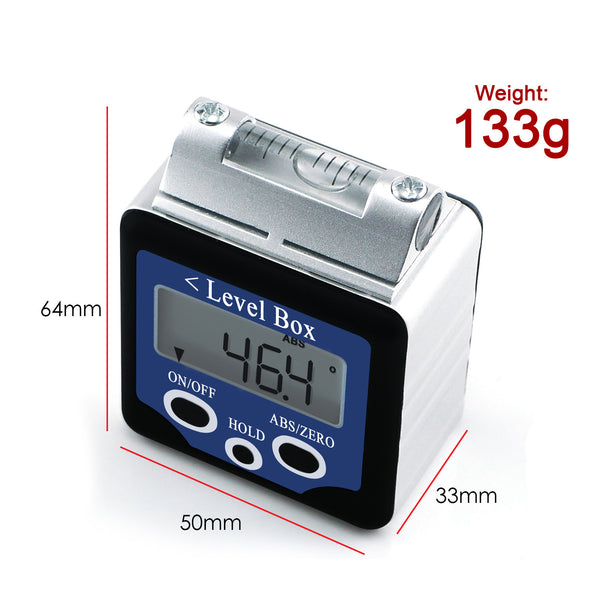

- Size: approx. 64 x 50 x 33mm
-
Weight: approx. 133g

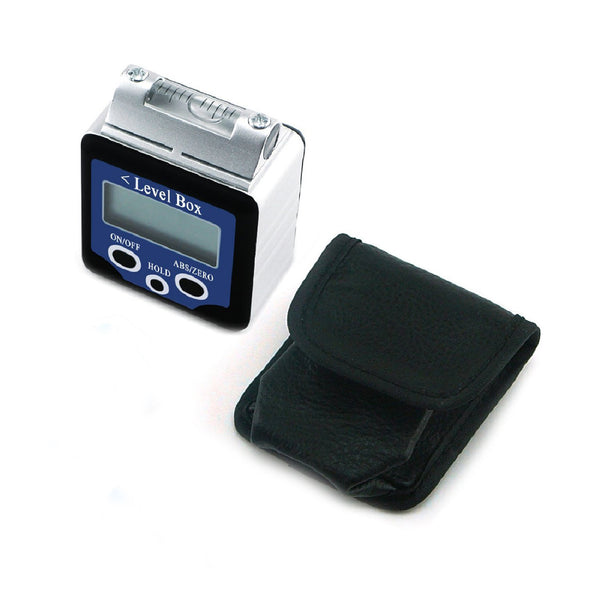

Set Includes
- 1 x Bevel Box with Spirit Level
- 2 x 3V CR2032 Lithium Battery (FREE)

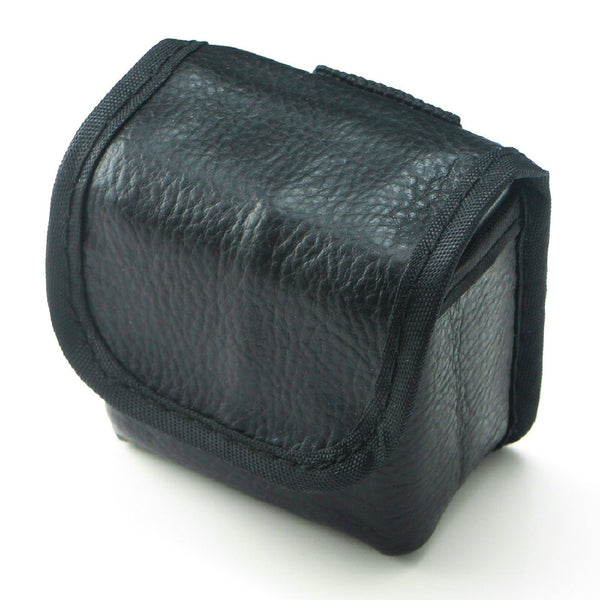

- 1 x Carrying Pouch (FREE)
- English Quick Start Guide
- Standard Factory Package
