DLH-60 Portable LED Head Light Lamp Medical Loupes

SKU:

$229.90

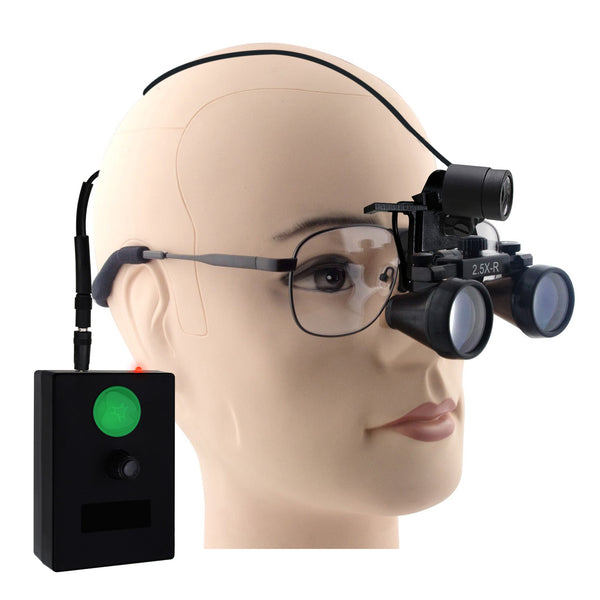

This Dental LED Headlight is used for surgical operations and examination purposes. It is compatible with dental/surgical loupes with magnification not over 3.5X.

Featuring 50,000 Lux brightness and 6000K color temperature providing bright, white, and shadow-free light allowing the doctor to see tissue characteristics without distortion.

The LED light casing is made of Aluminum, so it is durable and lightweight. Also, the light casing has a special thermal management system with a 143cm total headlight cable for convenient use. The battery pack has a built-in Rechargeable Li-ion battery with power indication and fast and easy recharging of the battery.

Features:

Small and Light Weight Design
Advanced technology, 50,000 Lux Illumination Intensity, no lamp replacement the lamp
Unobstructed Co-axial illumination
Headlight housing: Special thermal management system

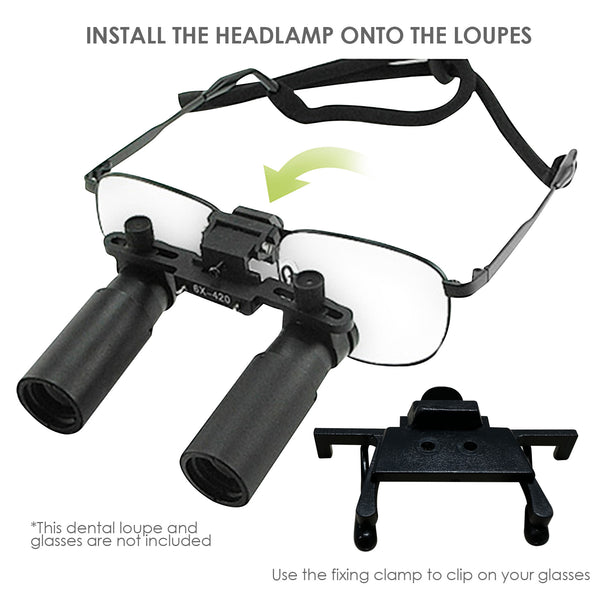

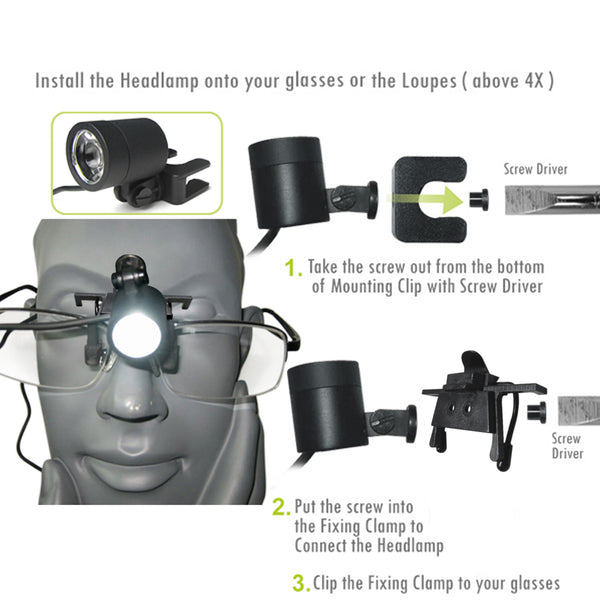

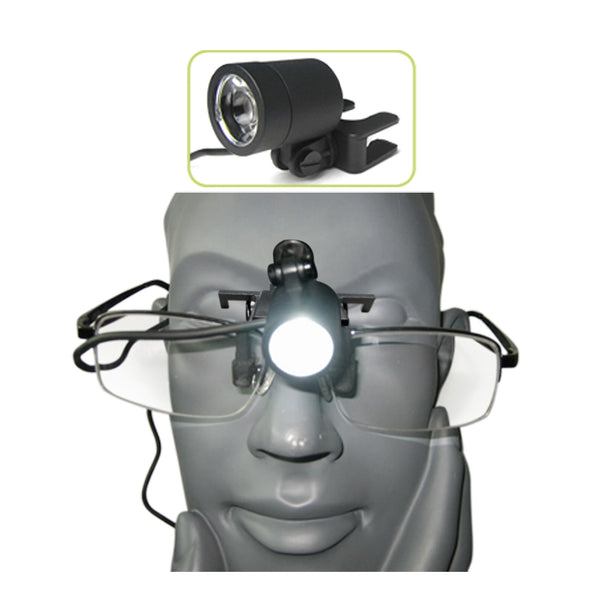

The headlight can be attached to loupes with the supplied mount

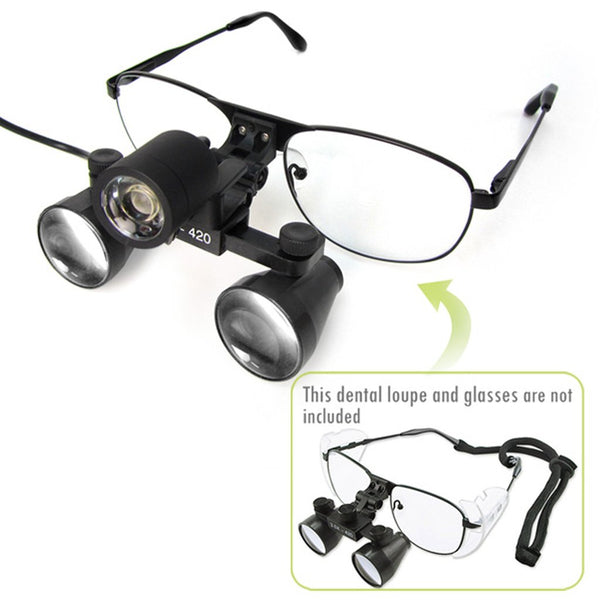

Compatible with most flip-up style loupes
The direction and angle of the LED beam are almost adjustable
Maximum 143cm (4.69 feet) for headlight cable
LED Operating Life up to 30,000 hours
Adjustable Brightness Intensity (0~100%)
Advanced Rechargeable Polymer Li-ion cells Battery
Approx. 4 hours recharging time for battery
The recharged battery operates approx. up to 4~5 hours
Power Indication in Battery Pack
Standards: UL / CUL / FCC / PSE / CE

Specifications:

Head Light

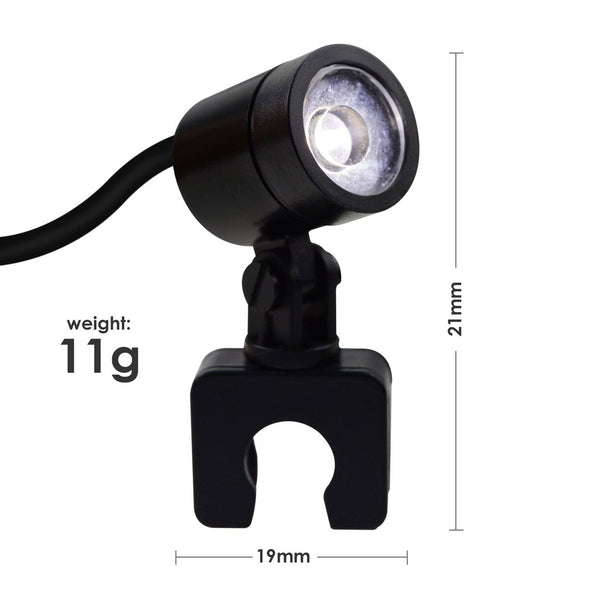

- Size: 19mm diameter; 21mm length
- Weight: approx. 11g (0.39 oz) (including mount)
- Cable Length: Max. 143cm (4.69feet)
- Diameter of light spot at a distance of 420mm: approx. 80mm
- Illumination (lux): approx. 50,000 Lux @ 250mm
- The direction of Illumination: adjustable to almost any direction
- Operating Time: approx. 4-5h with the included battery pack
- Light Source: 1W white LEDs
- LED Operating Life: 30,000hours (estimated life, depends on intensity used)
- LED Color Temperature: 6,000K (CRT) purely white light
- Surface Operating Temperature: approx. 60°C (ambient temperature: 25°C)

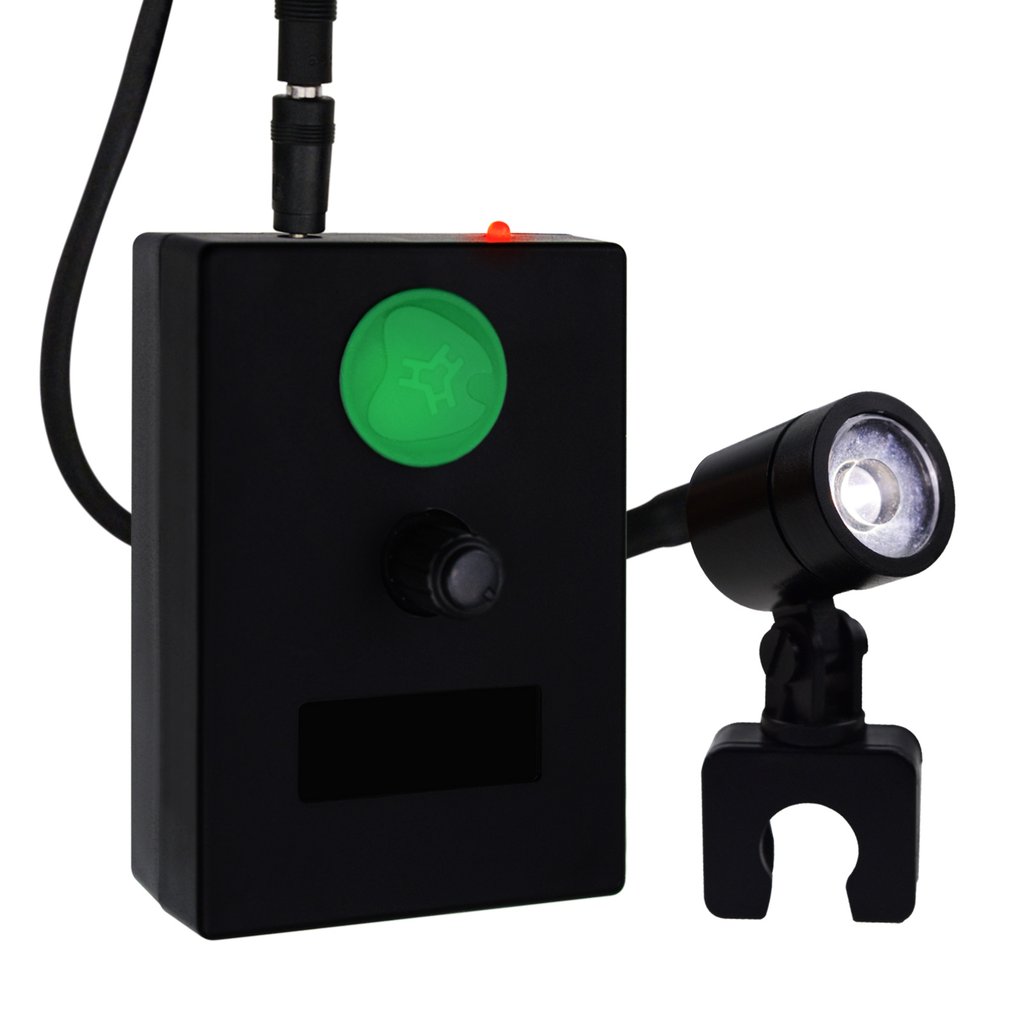

Battery Pack
- Input: 12V DC, >1.0A
- Output: Variable, 0-4V DC / 0-0.6A

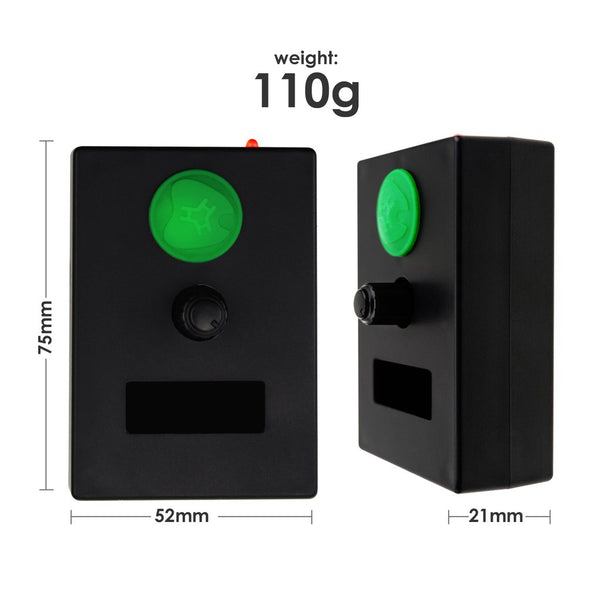

- Weight: approx. 110g (3.99 oz) including battery
- Dimension: approx. 75(L) x 52(W) x 21(H)mm (2.95 x 2.05 x 0.83 inch)
- Duration of use: approx. 4-5hours at full load
- Charging Time: approx. 4hours
- High Battery Output Efficiency: > 90%, ASIC
- Type: Advanced Rechargeable Polymer Li-ion cells
- Capacity: 7.4V, 1400mAh (approx.)
- Battery Life: approx. 500 charge/discharge cycles
- Battery Protection: Against over-charge and over-discharge
- Power Adapter (Input): 100~240V AC, 50~60Hz 0.3A (US / EU / UK / AU plug)
- Power Adapter (Output): 12V DC, >1.0A
- Output DC plug: Mini USB 5 pin
- Can be recharged to the USB port of the computer
