AG-82302 Digital Angle Finder / Protractor Tool with Spirit Level 0 ~ 360° Measuring Range 0.1° Accuracy

OEM Packaging & Design Service

AG-82302 Digital Angle Finder / Protractor Tool with Spirit Level 0 ~ 360° Measuring Range 0.1° Accuracy

SKU:
Regular Price $23.90
Express Checkout With:

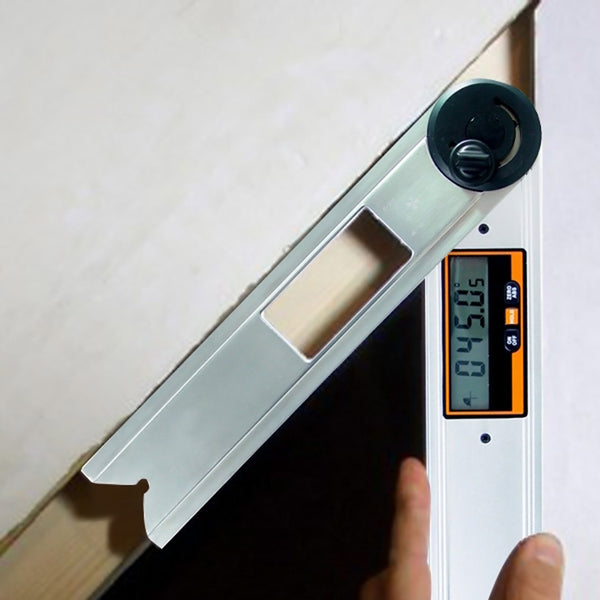

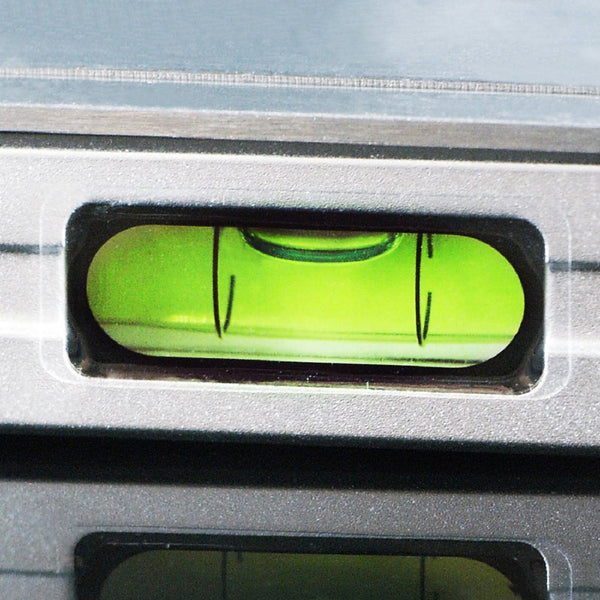

Easy to measure all kinds of angle and draw lines, features accurate Bubble / Spirit Level for measuring horizontal level easily. It has measuring range up to 360° without locking knob and adjustable pivot leg providing 225° range of movement. The display always reads upright, no matter which way it is turned. Easy calibration and zero setting with data HOLD function. Analogue quadrant for easy reading and rated as waterproof to IP54 standard. Rust-resistant and durable material for use on even the most demanding job sites.

Features:

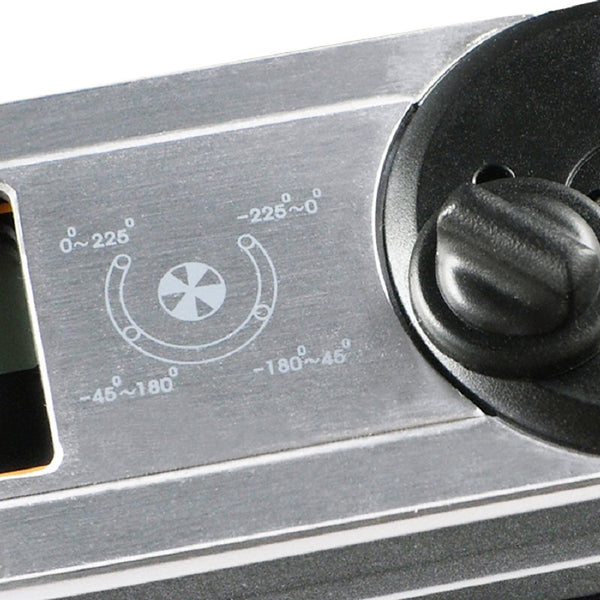

  • With analog quadrant display to allow easier deciphering of angle position
  • ABS mode - automatically records the original zero position after power is off & display always reads upright
  • Absolute and relative measurement display with a single push of a button
  • With adjustable pivot bracket/arm provides up to 225° range of movement, fairly strong and rigid
  • Low power consumption
  • Smart & lightweight aluminum casing
  • Easy calibration and zero setting
  • Aluminum blade and box body ensures rust-resistant and durable and with a box shape main measure
  • reference base (for extra strength) and rigidity

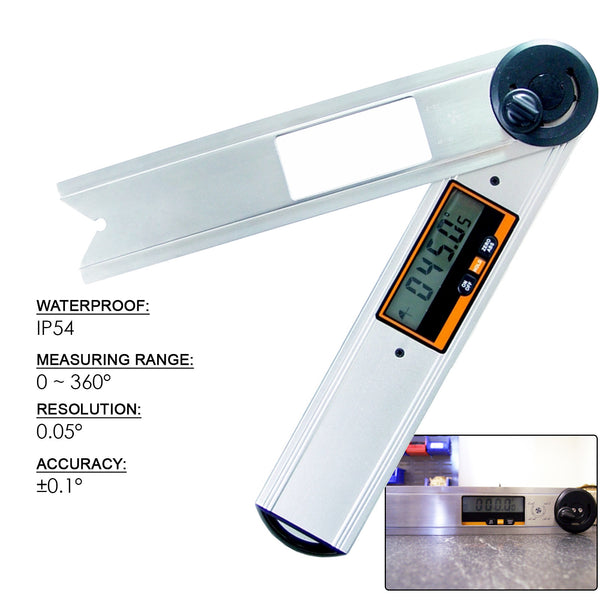

Specifications:

  • Waterproof: IP54
  • Measuring Range: 0° - 360°
  • Resolution: 0.05°
  • Accuracy: ±0.1°
  • Length: 10 inches
  • Automatic Shutoff: 5 Minutes
  • Working Current: <80uA
  • Work Temperature: 5°C~45°C
  • Work Humidity: <85%RH
  • Battery: 3V CR2032 battery
  • Battery Life: more than 2000 hours
  • Dimensions: 1" x 2" x 10.5" (21x50x255mm)
  • Item Weight: 407g
  • Shipping Weight : 0.450kg
  • Shipping Size: 33cm x 13cm x 5cm

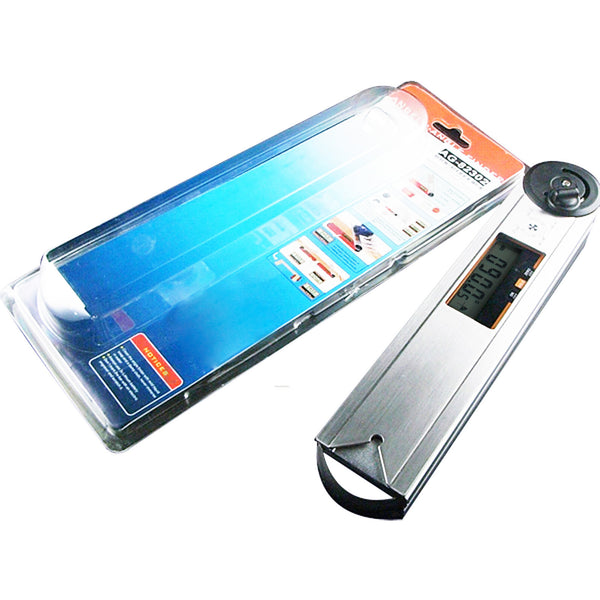

Set Includes:

  • 1 x Digital Angle Finde with Spirit Level
  • FREE battery
  • Packaging with instructions & guide
