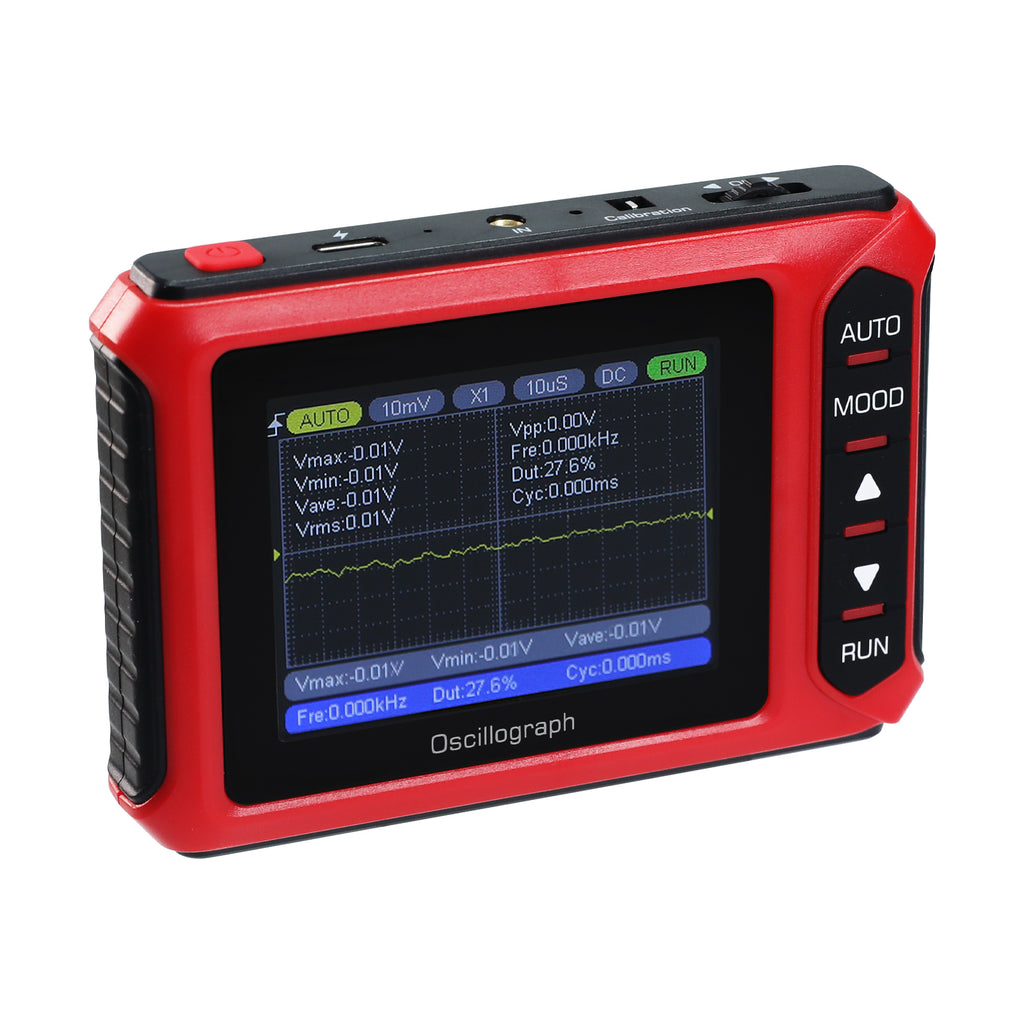

MUL-498 Portable Handheld Digital Oscilloscope Voltage, Frequency, Rise Time, Duty Cycle for Professional and DIY Analysis

The Portable Oscilloscope is your ultimate tool for on-the-go signal analysis. This powerful, miniature device combines advanced features like automatic measurements and in-depth waveform analysis with incredible portability. It delivers professional-grade performance in the field, at a workstation, or anywhere your work takes you, freeing you from the constraints of a lab bench.

Features:

• Automatic Adjustment measurement
• Advanced Waveform Analysis Capabilities

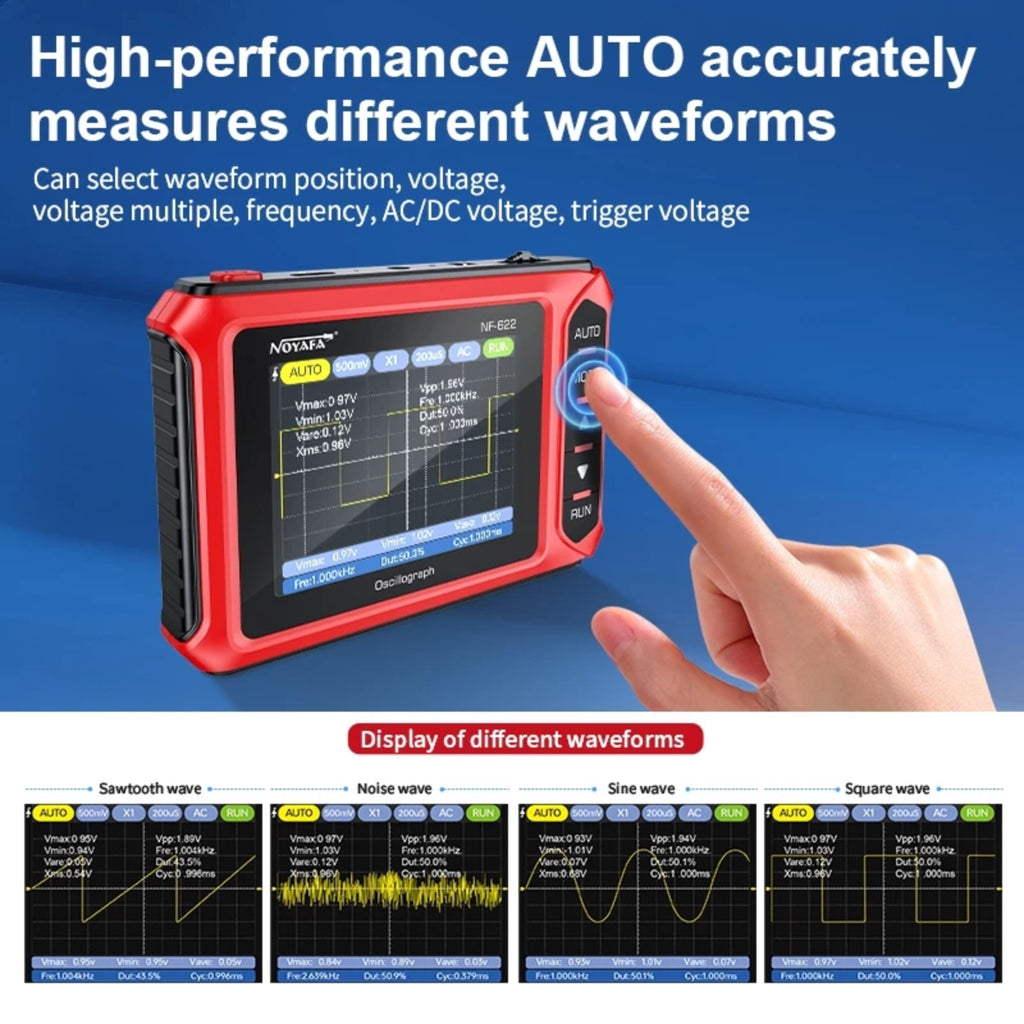

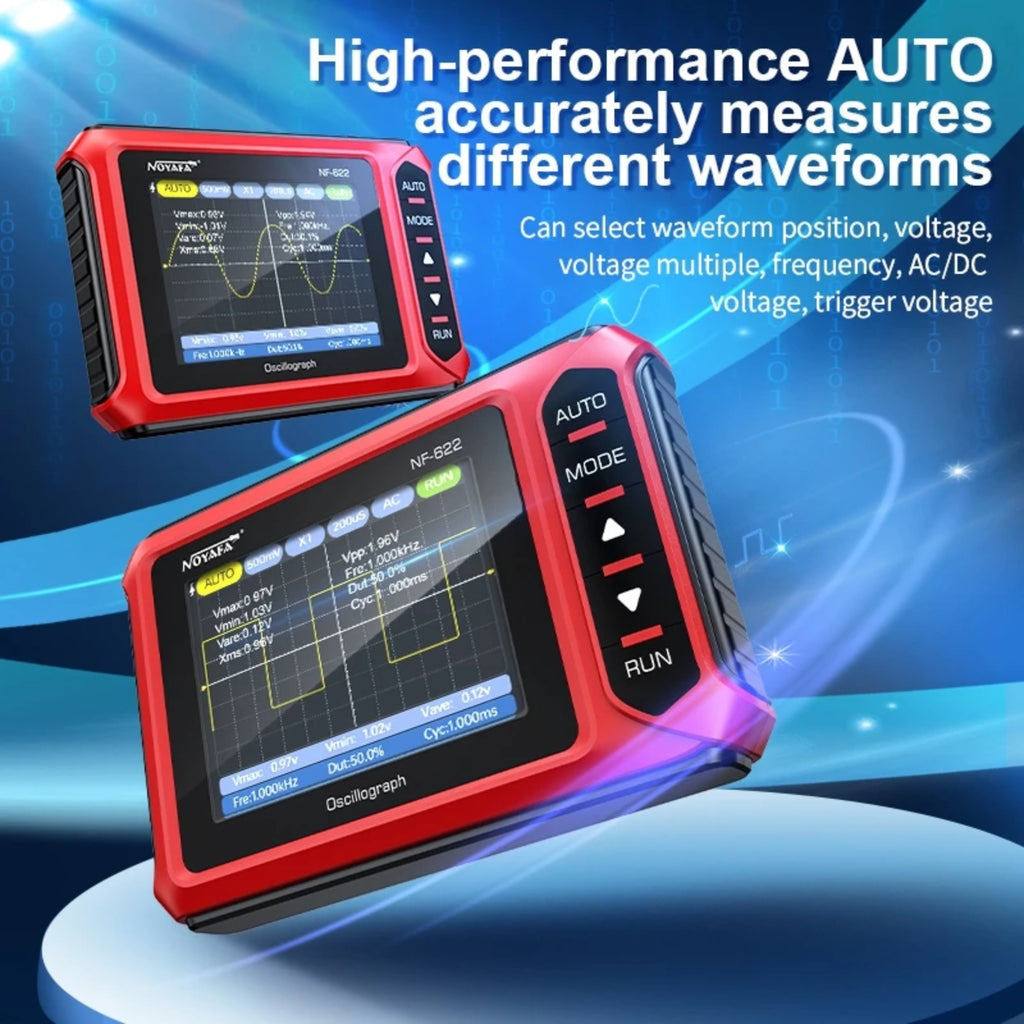

• High-Performance AUTO Function

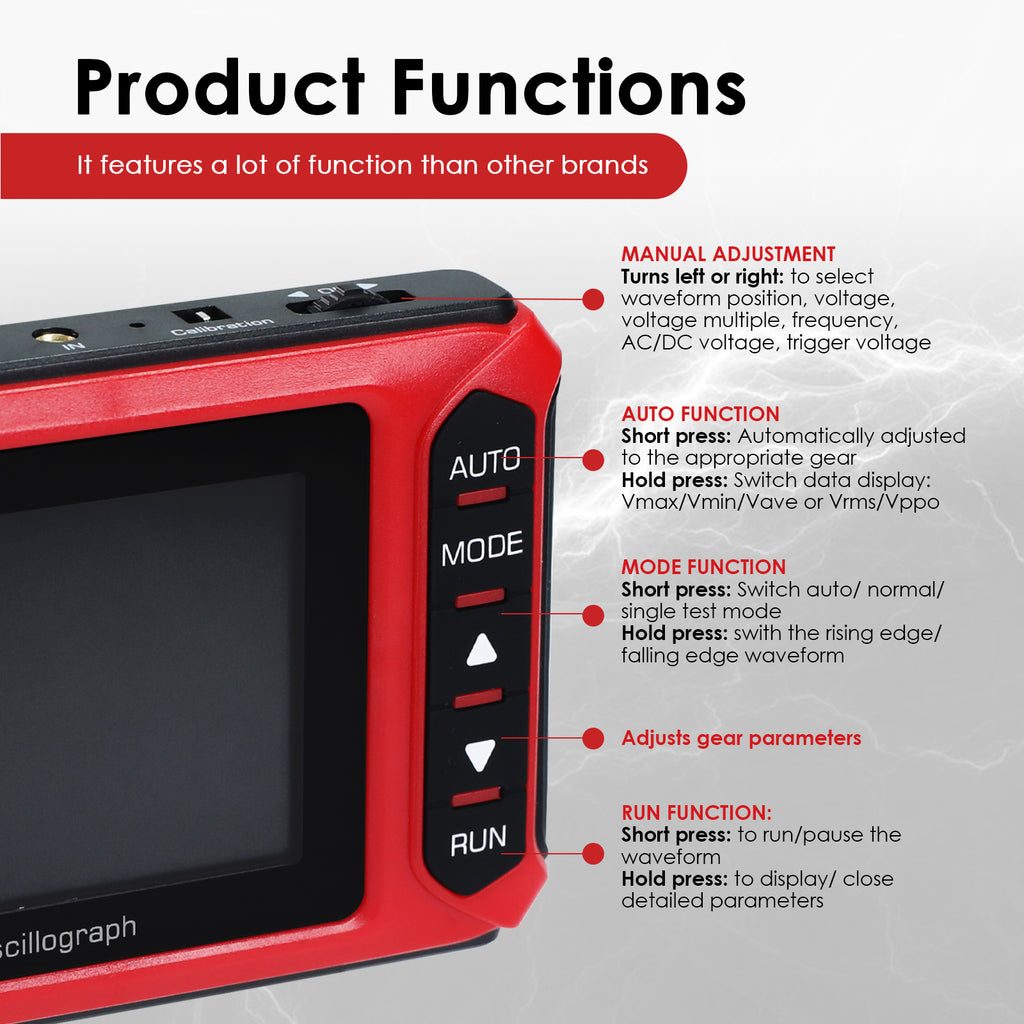

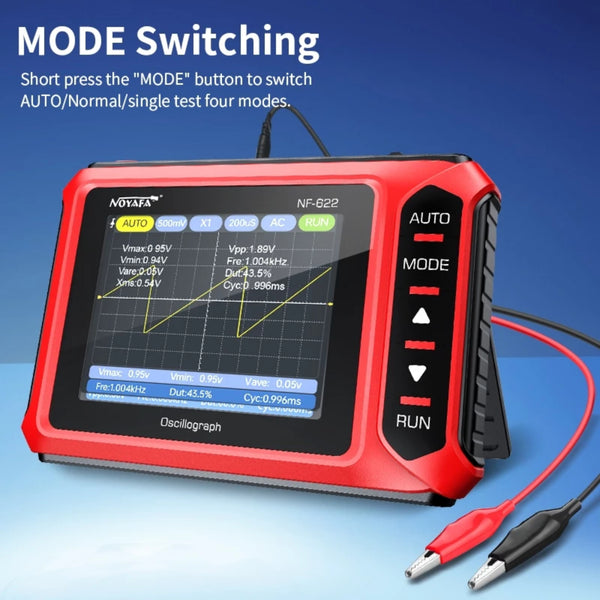

• Flexible Mode Switching (AUTO, Normal, and single-test modes)
• Mini Portable design
• Long Battery life

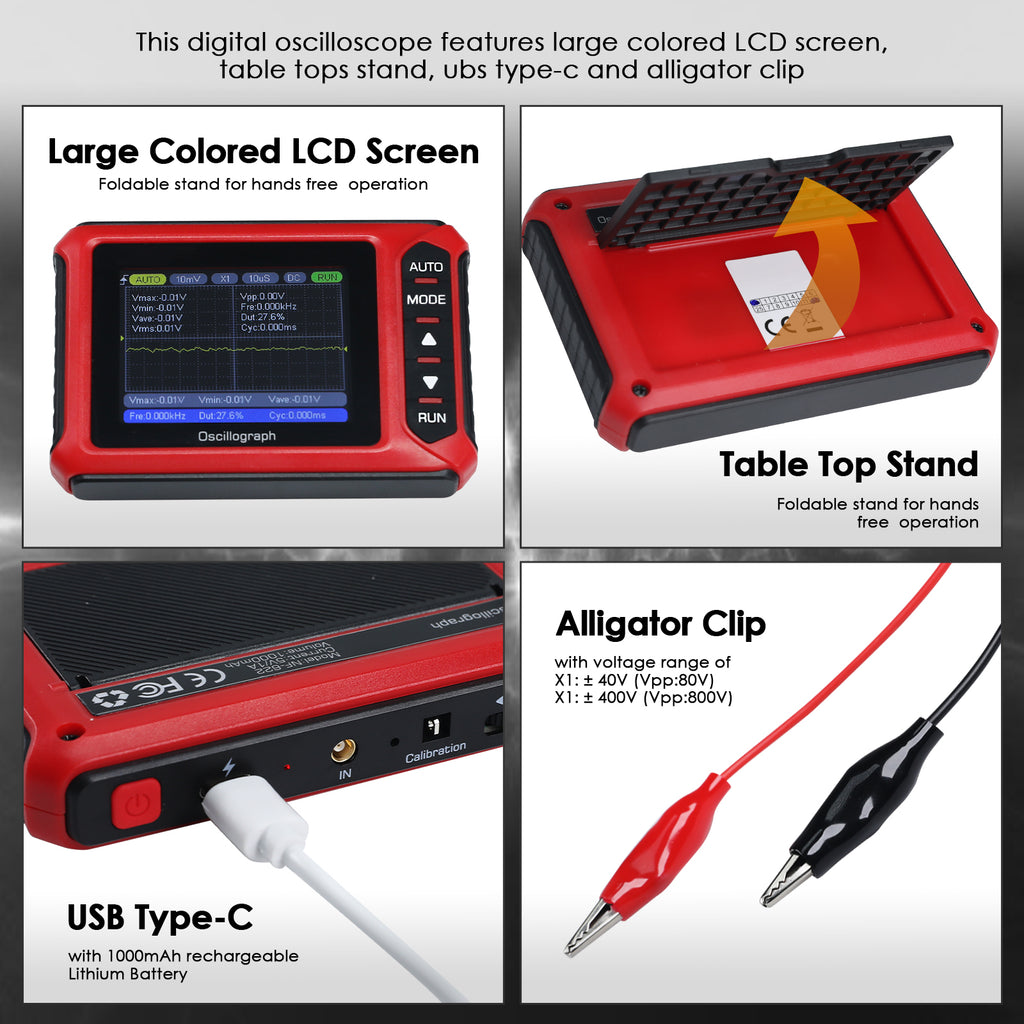

• Colored screen Display

Specifications:

• Display: 2.8-inch TFT
• Sampling rate: 2.5MS/S
• Bandwidth: 200K
• Vertical Sensitivity:
  • X1: 10mV/Div~10V/Div
  • X10: 100mV/Div~100V/Div
• Time base range: 10us/500s
• Voltage Range:
  • X1: ±40V (Vpp:80V)
  • X10: ±400V (Vpp:800V)
• Trigger mode: Auto/Normal/Single
• Coupling: AC/DC
• Calibrated Square Wave: Frequency 1KHz. Duty Cycle: 50%
• Auto Shutdown: 30min
• Lower Power Shutdown: 3.4V ±0.1V
• USB Charging: 5V/1A

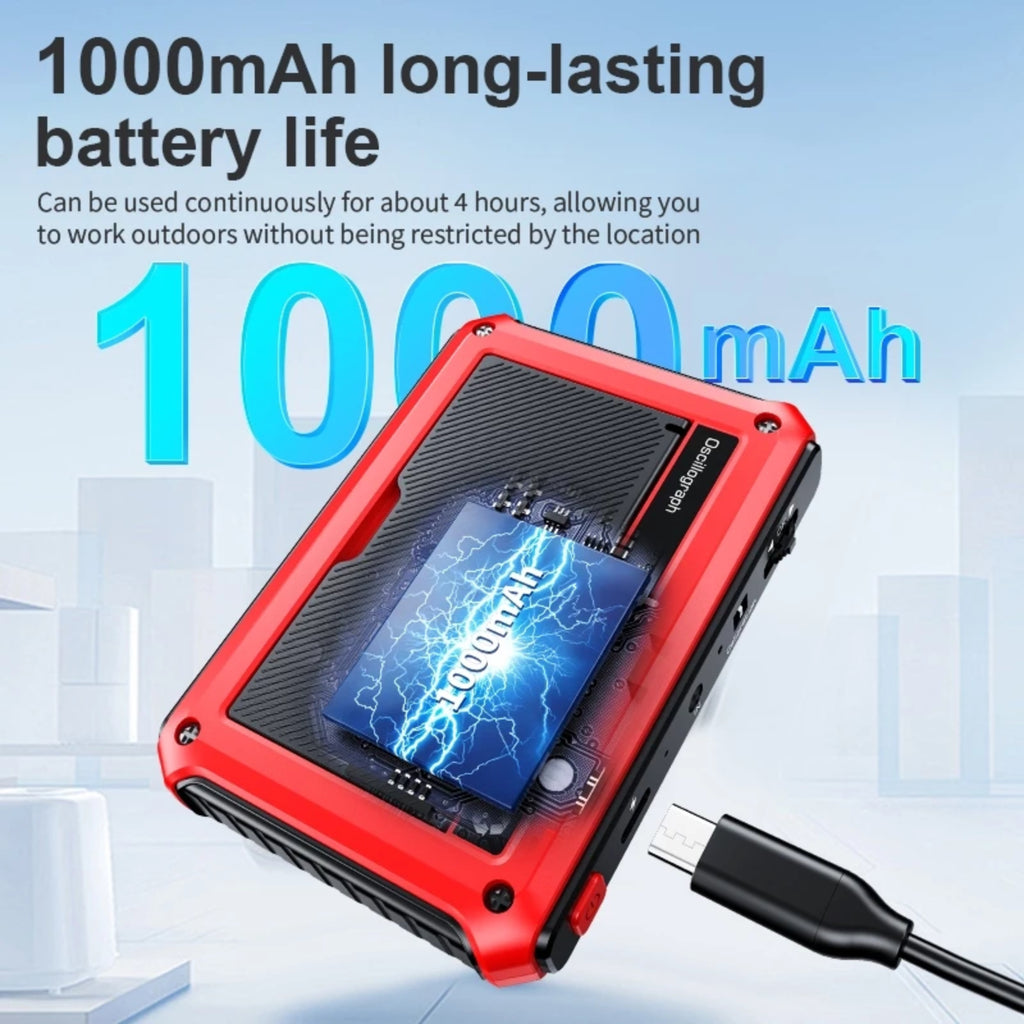

• Power Supply: 1000mAh Lithium Battery
• Dimension: 105 x 73 x 21mm

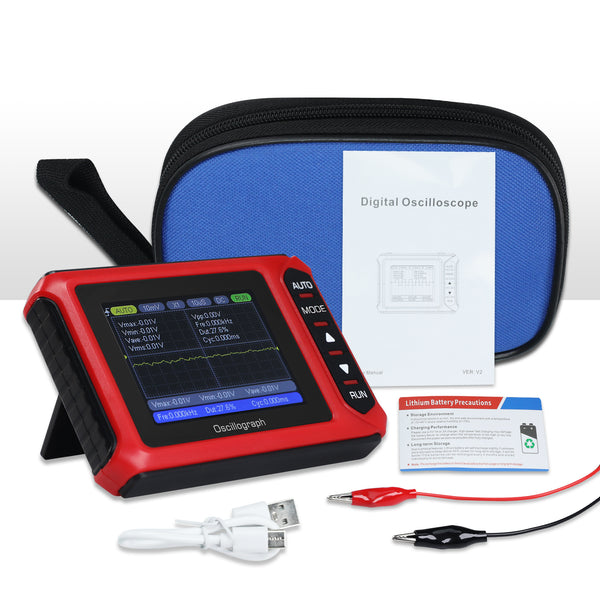

Set Includes:

• 1 x Digital Oscilloscope
• 1 x Alligator Clip Cable
• 1 x USB Type-C Charging Cable
• Carrying Case
• English User Manual
• Standard Factory Packaging
