TM-197 AC / DC Gaussmeter Magnetic Field Strength Meter Teslameter Magnetometer

Application:

• Measure the magnetic field generated from Direct Current (DC, with display by N/S Magnetic polarity) or
  Alternating Current (AC in 40~500Hz)
• Measurement of the residual magnetic after processing of mechanical parts
• Measure the residual magnetic generated from the stress after processing of stainless material
• Measurement of the magnetic force of magnetic materials
• Measure various steel materials with natural magnetism
• Measure the magnetic field strength of motors in various electrical appliances
• Measure the magnetic field strength of permanent magnets
• Detect the magnetic field leakage generated from superconductive magnets



Features:

• Data HOLD and backlight function
• Automatic and manual range function
• Relative / Peak Hold / Real-time Zeroing function
• Manual / Auto Record
• ON/OFF Buzzer
• MAX/MIN value display
• AC/DC Switching magnetic field measurement
• Data transfer via USB cable and CD software
• Selectable Unit of measurement (G / mT, °C / °F)
• Calendar (year/month/date) and time (hour/minute) setting
• Auto / Manual power off function
• Battery low indicator
• Compatible with Windows 7, 10, and 11 operating system
• Quality products made in Taiwan

Specifications:

• Screen: 5-digit LCD screen displaying up to 30000 value
• Measurement range:0~3000mT(milli Tesla)/0~30000G(Gauss)
• Conversion of units: 1mT(milli Tesla) = 10G (Gauss)
• Recording:

  • Manual: up to 200 logs
  • Automatic: up to 7000 logs(record interval shall be set-up in PC)
• Electrical Specifications:Accuracy is indicated as [% rdg + dgt] at 23°C ± 5°C with RH < 80%.
  • DC milli Tesla
    • Range:300.00 mT; Resolution:0.01 mT; Accuracy:±(4% + 10dgt)
    • Range: 2000.0 mT; Resolution: 0.1 mT; Accuracy:±(4% + 10dgt)
    • Range: 2000.1~3000.0 mT; Resolution: 0.1 mT
  • DC Gauss
    • Range:3000.0G; Resolution:0.1G; Accuracy:±(4% + 10dgt)
    • Range:20,000G; Resolution: 1G; Accuracy:±(4% + 10dgt)
    • Range:20,001~30,000G; Resolution: 1G
  • AC milli Tesla
    • Range:150.00mT; Resolution:0.01 mTl Accuracy:±(5% + 20dgt)
    • Range: 1500.0mT; Resolution: 0.1 mT; Accuracy:±(5% + 20dgt)
  • AC Gauss
    • Range:1500.0G; Resolution:0.1G; Accuracy:±(5% + 20dgt)
    • Range:15,000G; Resolution:0.1G /1G; Accuracy:±(5% + 20dgt)
  • Temperature
    • Range:-20~50°C (-4~122°F)
    • Resolution:±0.1°C (±0.1°F)
    • Tolerance:±1.0°C (±1.8°F)
• Operating Environment: 5~40°C (41~104°F), <80% RH
• Storage Environment: 0~50°C (32~122°F),<70% RH
• Weight: approx. 320gms (including battery)
• Dimension: 156 x 73 x 35mm

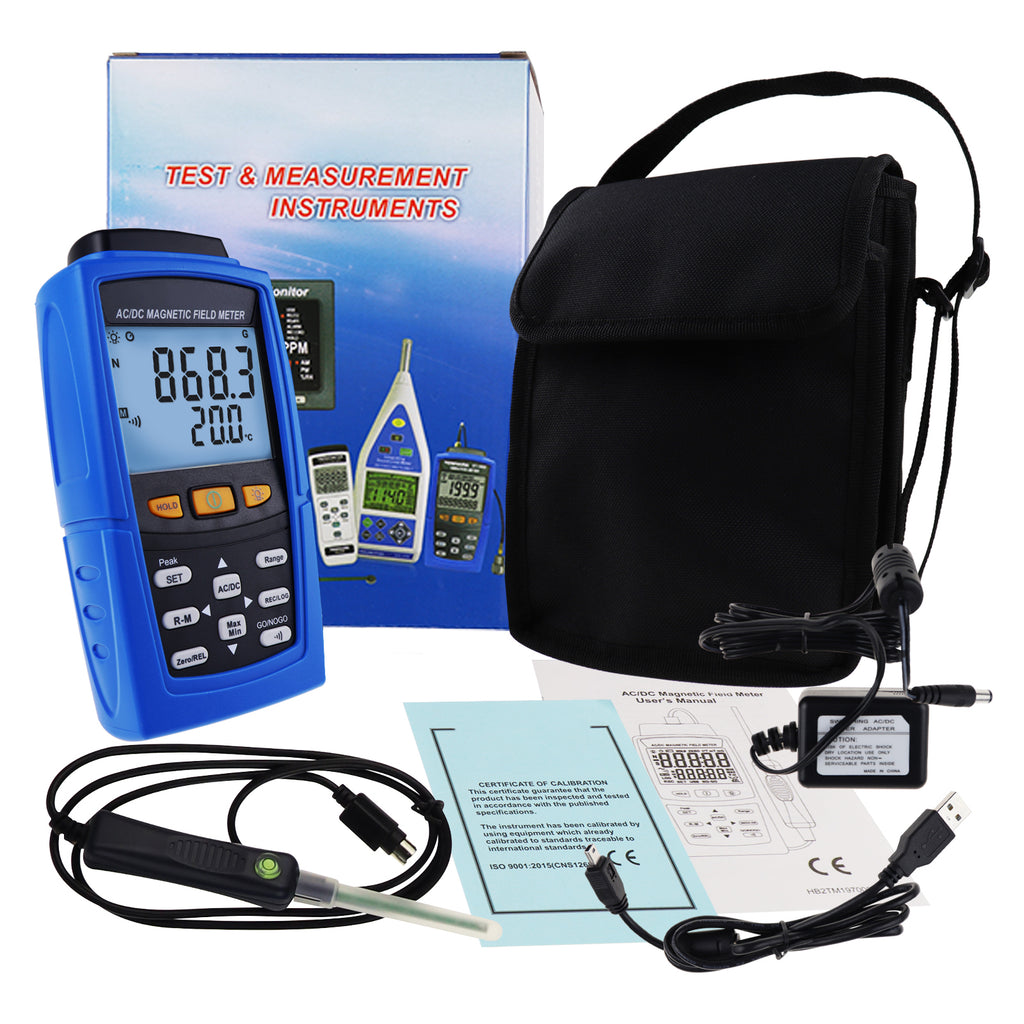

Set Includes:

• 1 x Magnetic Field Meter
• 1 x AC/DC Magnetic Probe
• 6 x 1.5V (UM4/AAA) Battery

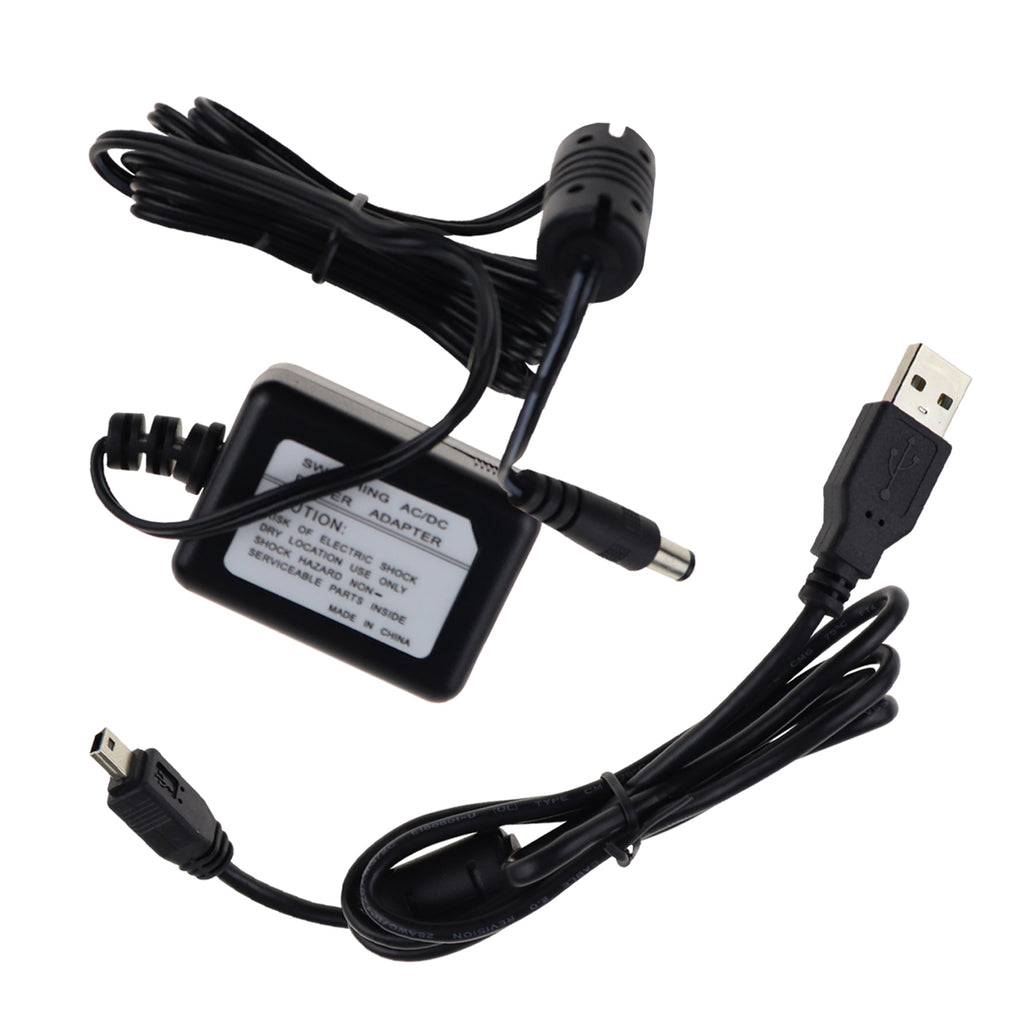

• 1 x Power adapter DC 9V
• 1 x USB Cable and installation disc
• English Instruction Manual
• Standard factory packaging
